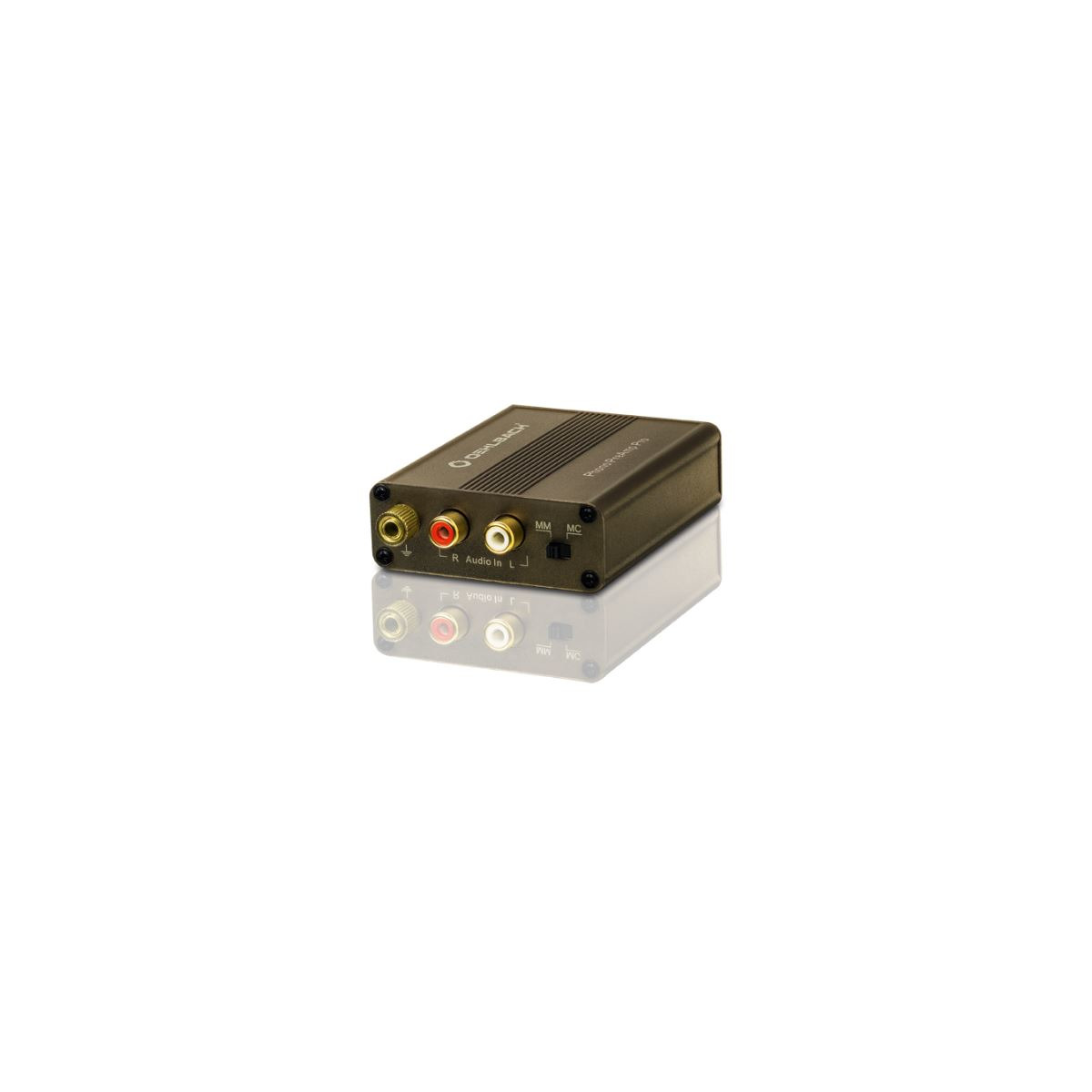

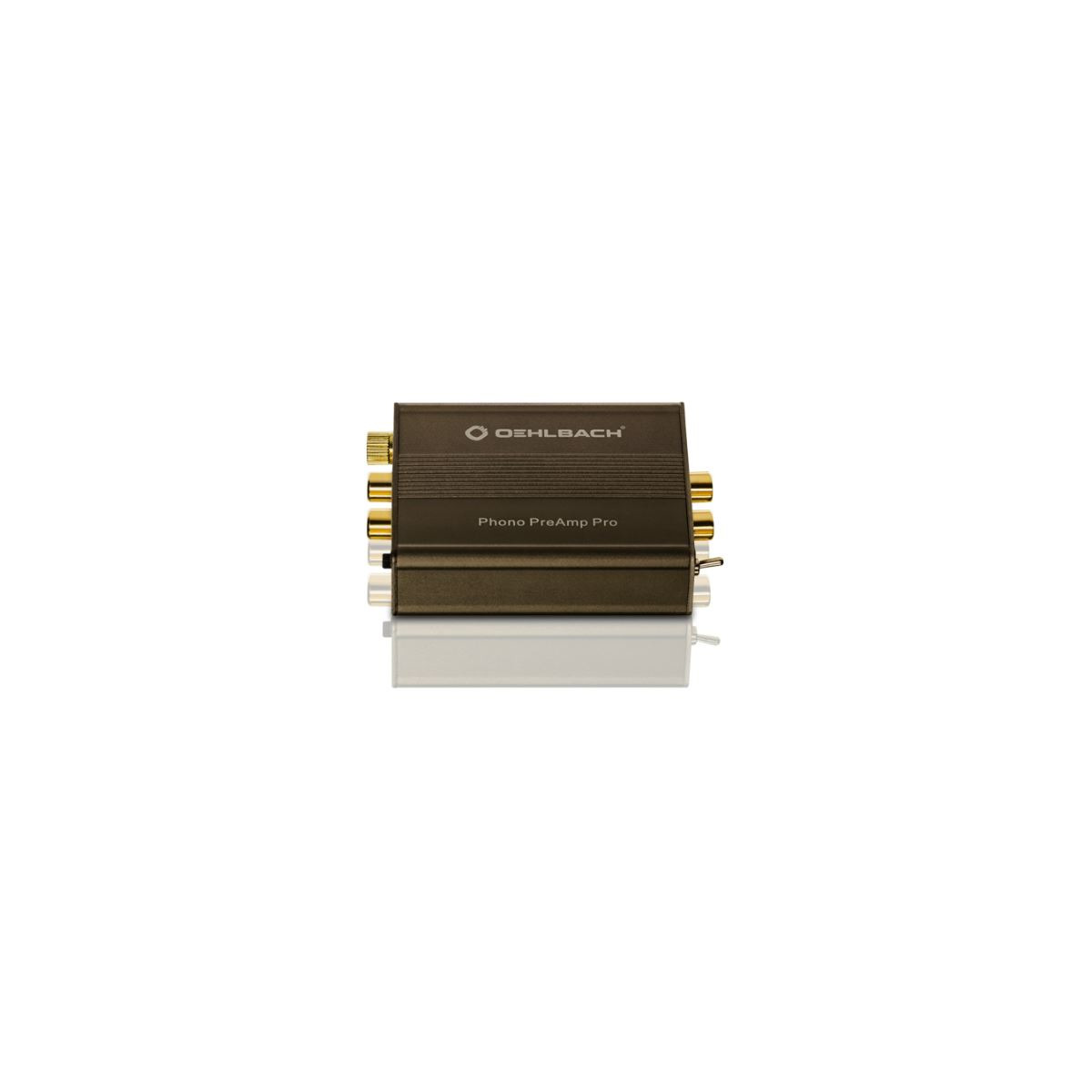

PHONO PREAMP PRO

LOW-DISTORTION PHONO AMPLIFIER FOR RECORD PLAYERS WITH MM OR MC PICKUP

The Phono PreAmp Pro from Oehlbach integrates your record player with an MM or MC cartridge into existing high-quality hi-fi components without a dedicated phono input. The low-noise pre-amp is fitted with gold-plated contacts to guarantee a stable and reliable connection between the phono device and the hi-fi system. Equipped with an external power supply, the Phono PreAmp Pro weights just 100 g and easily fits into any hi-fi rack thanks to its compact design. The individual components are connected via analogue stereo RCA connectors.

- 24- carat gold-plated contacts

- For moving-magnet pick-up

- For moving-coil pick-up

- Power supply via external power supply unit

Weight - 0,1 kg

Channel Separation - > 70 dB (MM), > 60 dB (MC)

Permissible relative humidity: - 5% to 90%

Temperature range: -15 °C à +50 °C

Signal-to-noise ratio - >72 dB (MM); >60 dB (MC)

Input impedance - (MM) 50 Ohms (MC) 100 Ohms

Dimensions - 94 mm x 24 mm x 64 mm
