MAGNAT THX LCR 100

Purchase this product

RRP: $1,799.95
Our Price: $1,709.95

Enquire about this product Print Product Information

HORIZONTAL OR VERTICAL: THE BEST THX FRONT LOUDSPEAKER OF ITS CLASS


Perfection for home cinema enthusiasts thanks to THX Ultra 2 certificationq


The only front speaker in the world with THX Ultra 2 certification for both horizontal and vertical operation


Extremely large 42 mm high-performance dome tweeter with a wave guide front panel for ideal dispersion characteristics


Two exceptionally powerful 17 cm woofers for maximum dynamics, precision and performance


Extremely sturdy MDF cabinet with low-resonance 30 mm baffle


Never before in the history of THX®: Despite the strict requirements regarding dispersion characteristics, the LCR 100-THX was granted the coveted THX Ultra2™ certification for both horizontal and upright operation. Two 17 cm subwoofers as well as the large tweeter cone ensure distortion-free levels up to beyond 110 decibels as well as outstanding purity of sound. The 42 mm tweeter cone runs in an optimally linear way from 1,500 – 27,500 hertz thanks to the installed horn (Waveguide) and sound distribution lens. This helps the LCR 100-THX to achieve a level of efficiency far in excess of 90 decibels. In other words: Even smaller AV receivers make it possible to experience a great cinema feeling with Cinema Ultra. The enclosure of the LCR 100-THX is flat and is perfectly suitable for unobtrusive wall mounting via wall brackets and VESA fittings.


PRINCIPLE - THX Ultra2-certified LCR Speaker 2 way, sealed

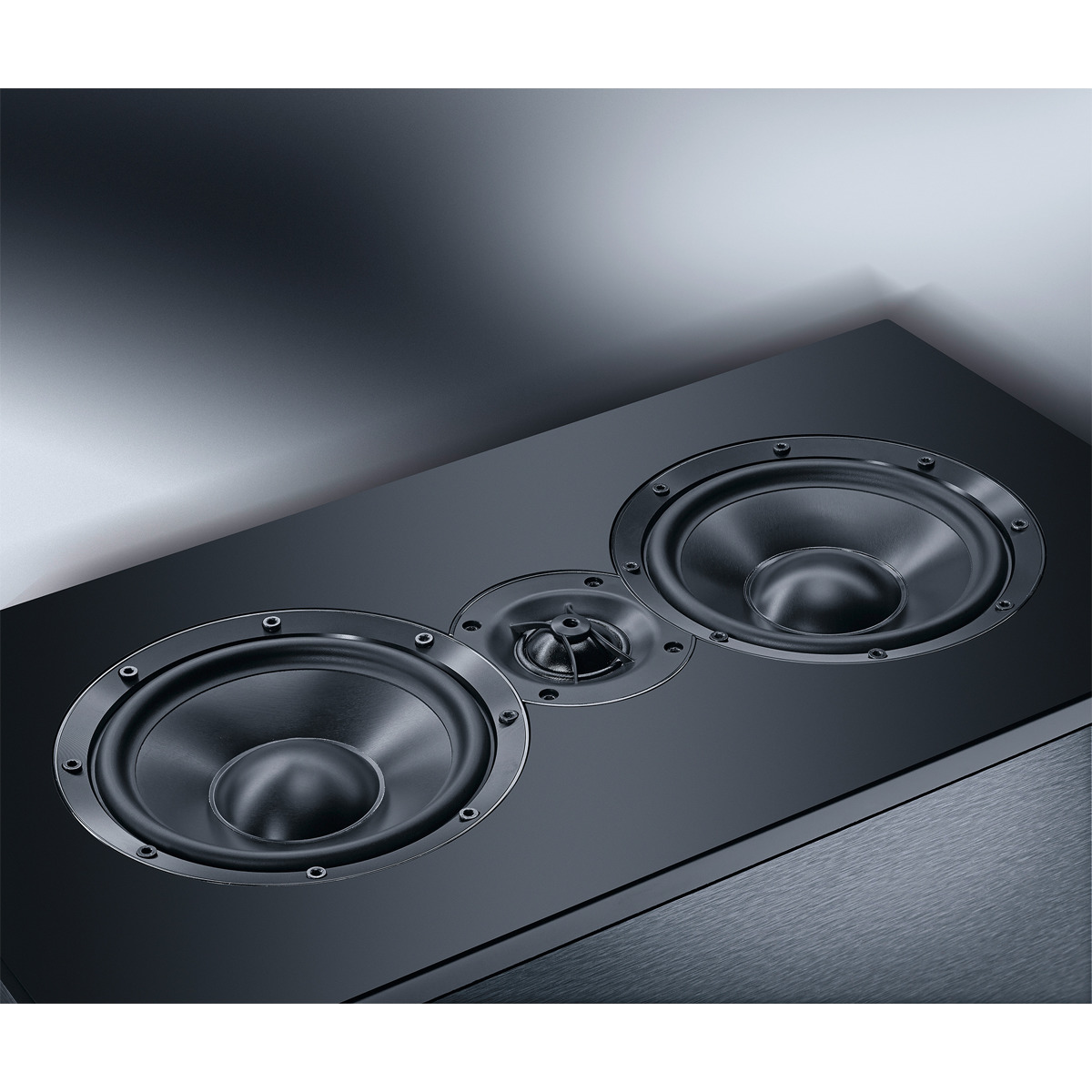

EQUIPMENT - 2 x 170 mm woofer-midrange 1.65" dome-tweeter


POWER HANDLING (RMS/MAX.) - 220 / 350 Watts


SENSITIVITY (2.8V/1M) - 93 dB


IMPEDANCE - 4 – 8 Ohms


FREQUENCY RESPONSE - 80 - 27.000 Hz


CROSSOVER FREQUENCIES - 1.550 Hz


RECOMMENDED AMPLIFIER OUTPUT - > 50 Watts


DIMENSIONS (WXHXD) - 280 x 520 x 188 mm


WEIGHT - 12.5 kg


HIGH-PERFORMANCE FRONT LOUDSPEAKER


THX Ultra2-certified front loudspeaker / centre loudspeaker for the Magnat Cinema Ultra set


Can be operated in a vertical or horizontal position, ensuring maximum set-up flexibility


All of the chassis have been specially developed for the Cimema Ultra set in order to meet the very strict requirements of the THX Ultra2 standard


The loudspeaker chassis are identical to the dipole surround sound loudspeaker RD 200-THX for optimum tonal harmony


Particularly tight-fitting chassis layout and specially tuned crossover for uniquely homogeneous horizontal and vertical dispersion characteristics


Top acoustic performance through individual components developed for high performance in all details


Perfect tonal harmony through identical loudspeakers for all three front channels


Markedly compact and flat enclosure for easy and unobtrusive integration into every home cinema system


Various set-up and wall-mounting options


Can also be used according to THX Ultra2 guidelines as a directly emitting surround or rear surround loudspeaker


MIDRANGE-WOOFER - Flow-optimised, highly stable die-cast aluminium cage to avoid compression effects and resonances. Metal-Core-Technology. Rigid ceramic/aluminum sandwich cone and dust cap for optimum precision. 8 screw fixings for firm anchoring in the baffle.


TWEETER -


Extremely large 42 mm high-performance polyfibre-compound cone


Computer-optimised Waveguide front panel with integrated diffusor for optimum dispersion characteristics according to the strict THX Ultra2 standard


Extremely powerful neodymium annular magnet system for the highest efficiency and outstanding broadband capability


Highly resilient precision voice coil on a ventilated aluminium support


Solid die-cast aluminium enclosure with large pole piece hole


Multiple damped coupling volume for particularly low resonance frequency

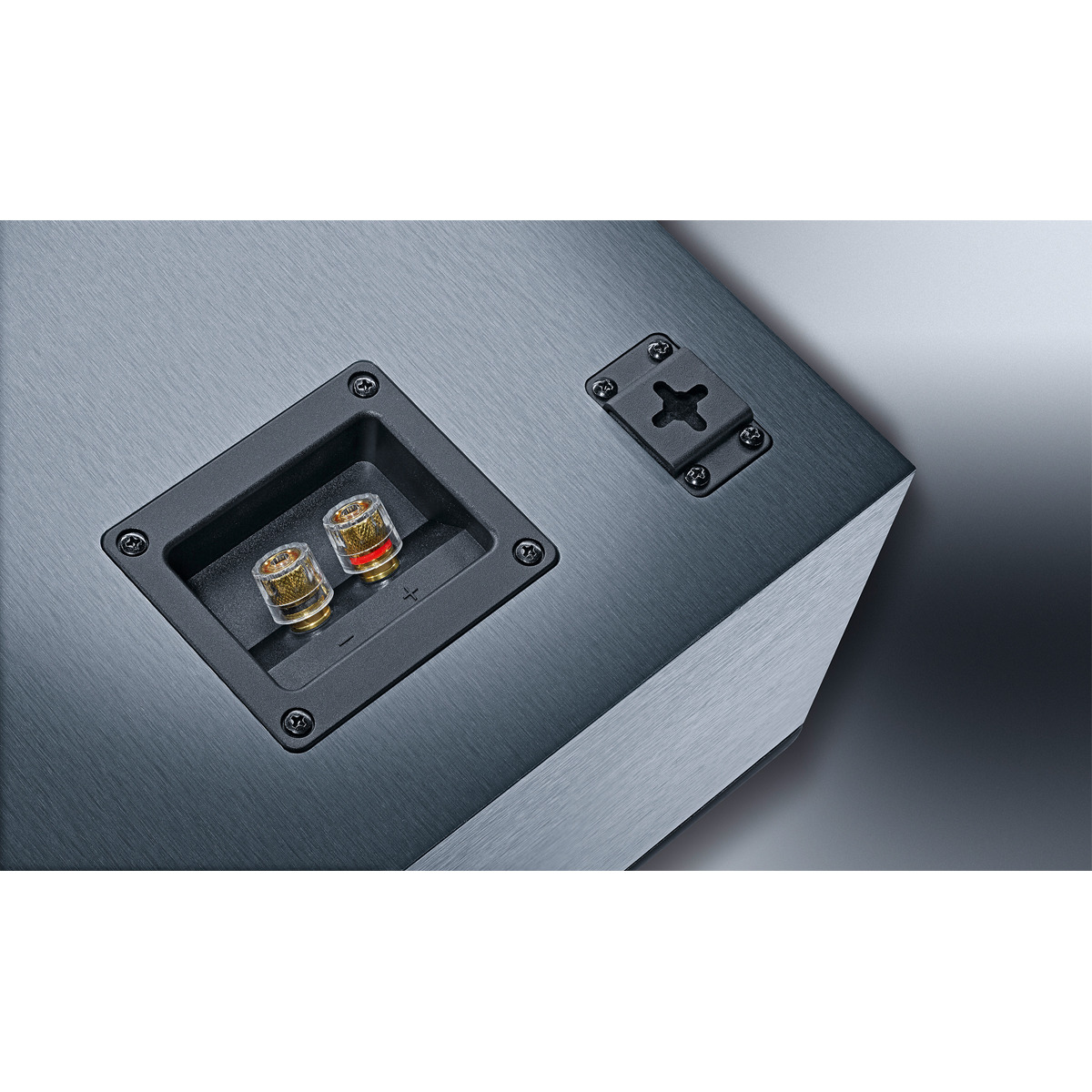

CROSSOVER - Particularly elaborate, amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard. Single-wiring connection terminal with gold-plated, acrylic sealed terminals.


CABINET -


Very stable, braced MDF enclosure with particularly low-resonance, 30 mm thick baffle


Cinema Ultra stealth design comprising: o offset baffle in a high-quality deep black silk matt lacquer finish o durable brushed-metal textured film in anthracite on the body o front panel and trim rings in matt black with a black chrome gloss ring o magnetically held cloth cover on a thin MDF frame o low-reflection metal logo in brushed titanium look


Closed housing for reproduction absolutely free of background noise at high levels according to the THX Ultra2 standard


Rotating Magnat/THX logo for correct alignments in vertical or horizontal operation

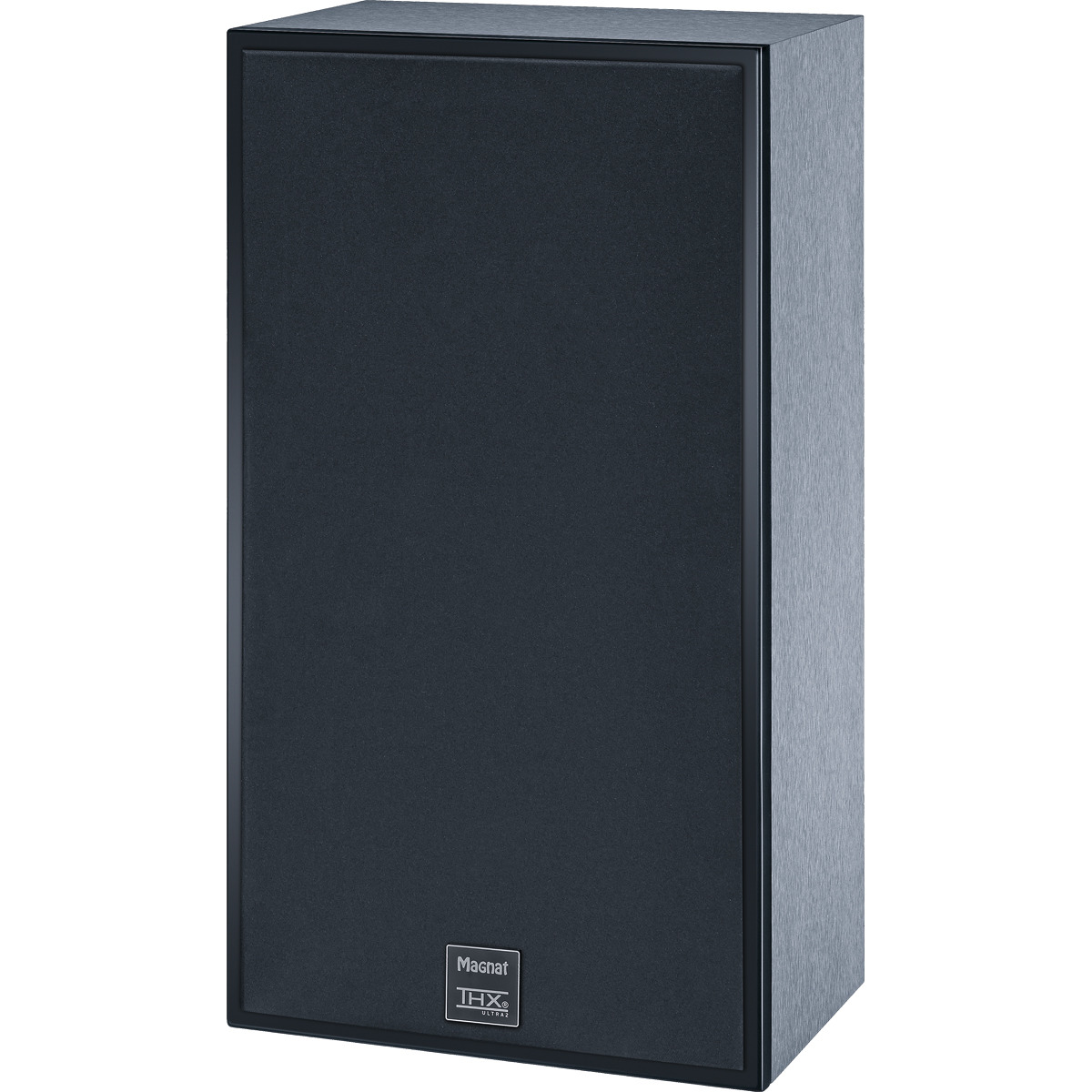

Removable fabric protection grille with optimum sound transmission and invisible magnet attachment

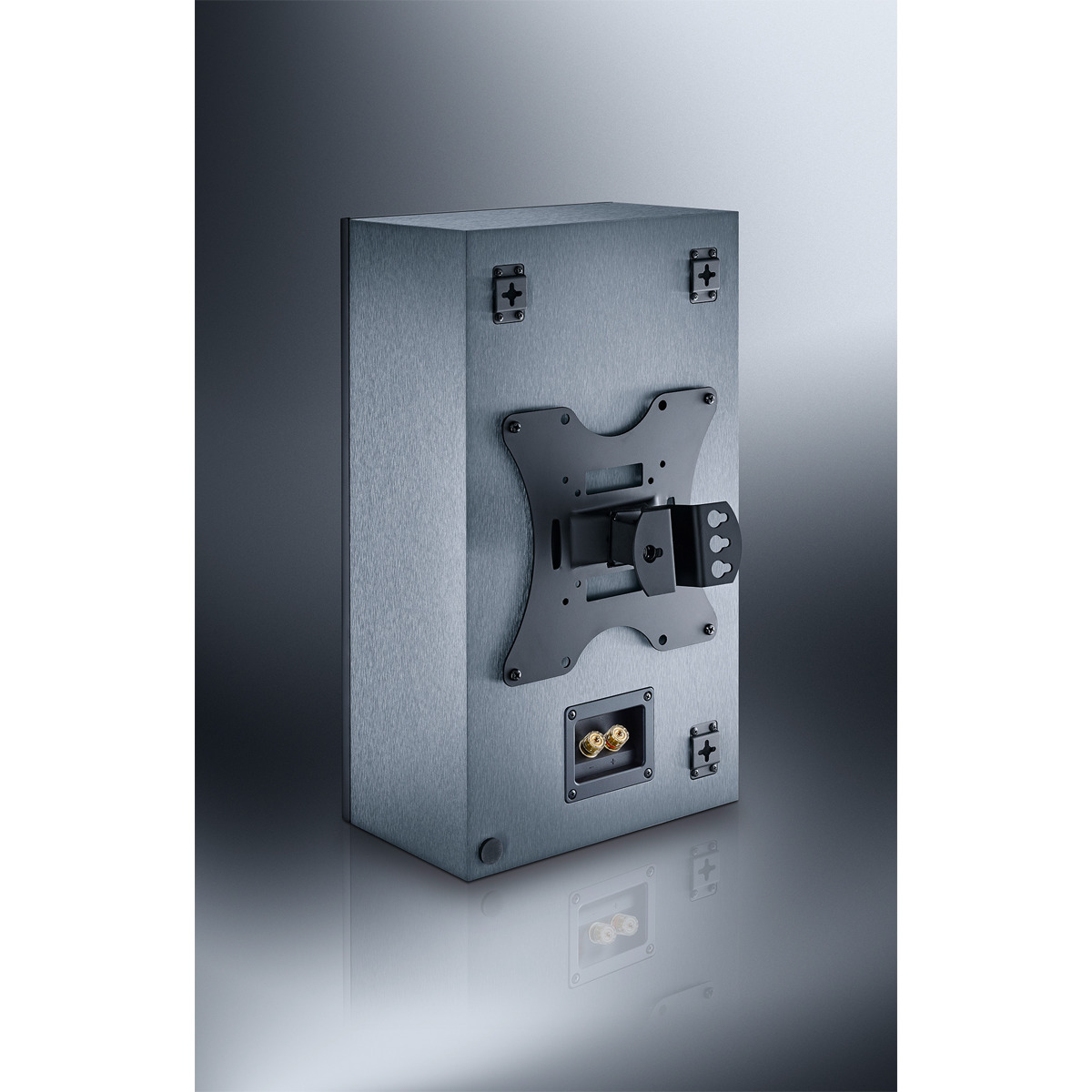

Sophisticated mounting system with numerous variations o Wall-fixing mountings according to the widespread VESA standard, hole pattern 200x200mm M6 o Sturdy metal wall brackets for vertical and horizontal mounting with silicone spacer


CABINET SURFACE - Front: black silk matt / body: textured film - anthracite
