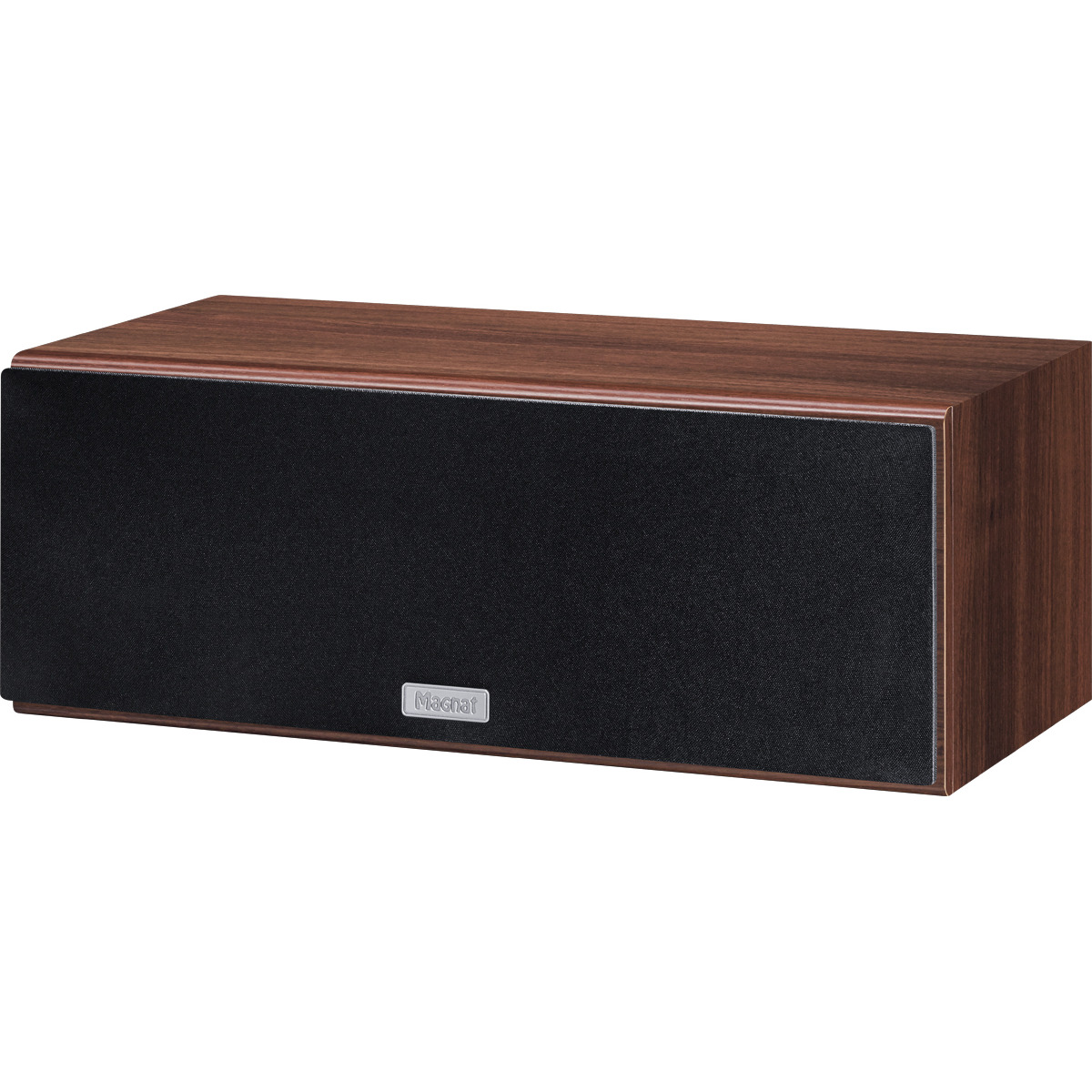

2-WAY CENTER SPEAKER
The ideal home cinema extension for the Tempus system
Finely tuned center speaker for outstanding speech intelligibility
25 mm fmax dome tweeter with dispersion-optimized sound guide and powerful neodymium drive for the best resolution
Two Klippel-optimized 130 mm FE Dynamics chassis: High-quality woofers for high resilience and precision
Sturdy, particularly low-resonance enclosure structure made of E1 MDF timber boards

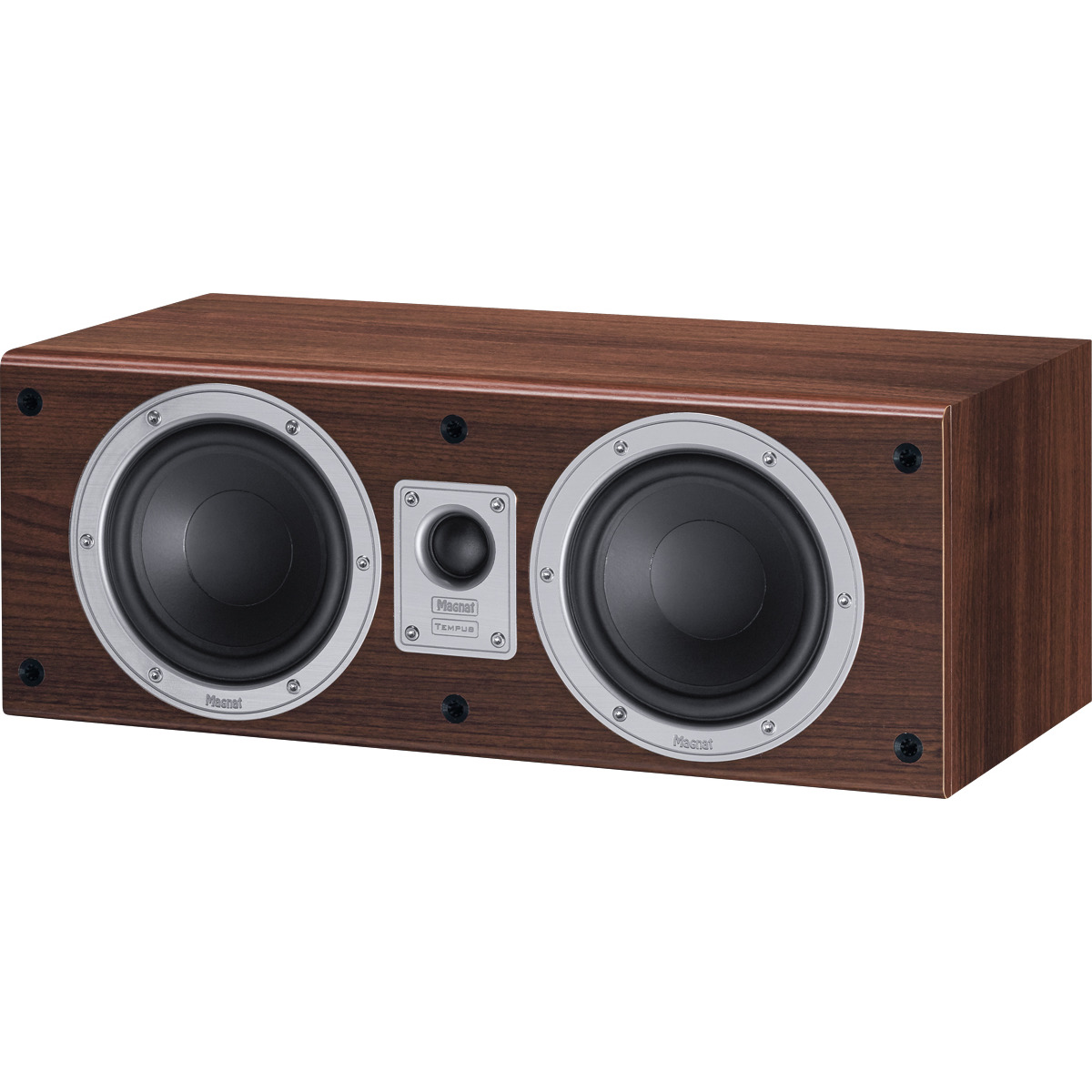

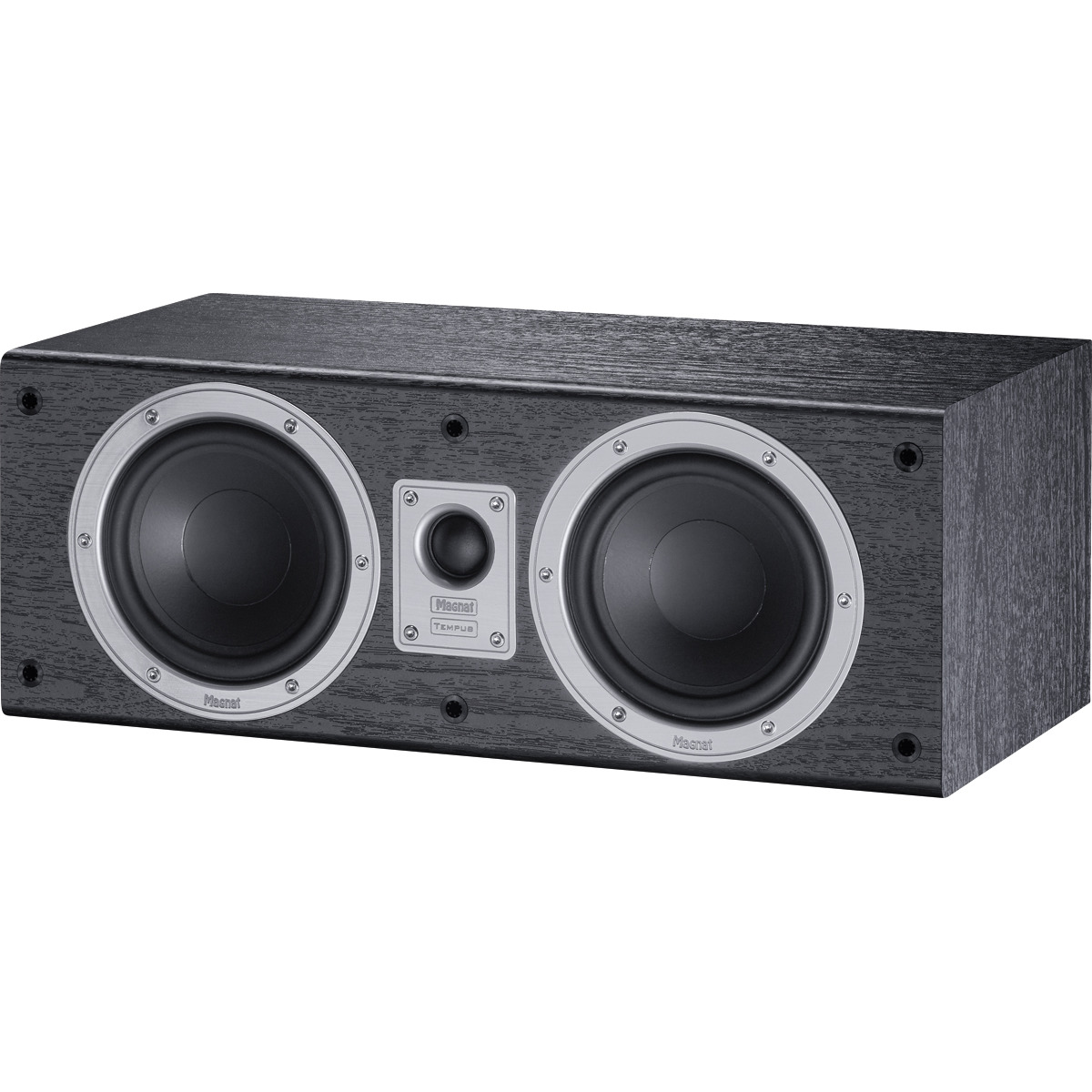

The center speaker in the Tempus family is designed as a 2-way system and features two 130 mm bass-midrange drivers from the FE Dynamics series. A high load capacity, which is enabled thanks to the ventilated voice coil unit and a sturdy metal basket with generous air vents, is combined with the outstanding precision and speed provided by the coated paper cones. As is the case for other components in the Tempus series, the newly developed 25 mm fmax tweeter also ensures an optimum resolution in the treble range here with its powerful neodymium drive. The Airflex ports in the low-resonance MDF housing eliminate the flow noise generated by the bass reflex speaker
PRINCIPLE - 2 way bass reflex
EQUIPMENT - 25 mm tweeter 2 x 130 mm woofer-midrange
POWER HANDLING (RMS/MAX.) - 85 / 150 watts
SENSITIVITY (2.8V/1M) - 91 dB
IMPEDANCE - 4 – 8 Ohms
FREQUENCY RESPONSE - 34 - 45.000 Hz
CROSSOVER FREQUENCIES - 3.300 Hz
RECOMMENDED AMPLIFIER OUTPUT - > 20 Watts
DIMENSIONS (WXHXD) - 460 x 180 x 230 mm
WEIGHT - 6 kg
WOOFER / MIDRANGE - coated paper cone, Ventilated voice-coil unit for maximum capacity. Klippel® optimised construction. FE-Dynamics woofer-midrange. Solid metal basket with generous ventilation openings. Cover rings for bass and mid-range speakers in a high quality metal finish
TWEETER - Newly developed 25 mm fmax dome tweeter with dispersion-optimized sound guide and powerful neodymium drive for an optimum resolution
CROSSOVER - Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components. Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts
CABINET - Airflex port with rounded reflex opening to minimize annoying resonances. Solid low-resonance cabinet construction using E1-MDF panels. Removable cloth grille. Resonance-damping rubber spikes included in delivery
