2.5-WAY BASS REFLEX FLOORSTANDING SPEAKER
Compact floor-standing loudspeaker with high-quality finish and high-performance components
Powerful and detailed stereo sound thanks to meticulous development and coordination
25 mm fmax dome tweeter with dispersion-optimized sound guide and powerful neodymium drive for the best resolution
Two Klippel-optimized 170 mm FE Dynamics chassis: 1 x woofer and 1 x subwoofer for high resilience and precision
Particularly low-resonance enclosure structure made of E1 MDF timber boards including sturdy base struts with height-adjustable spikes

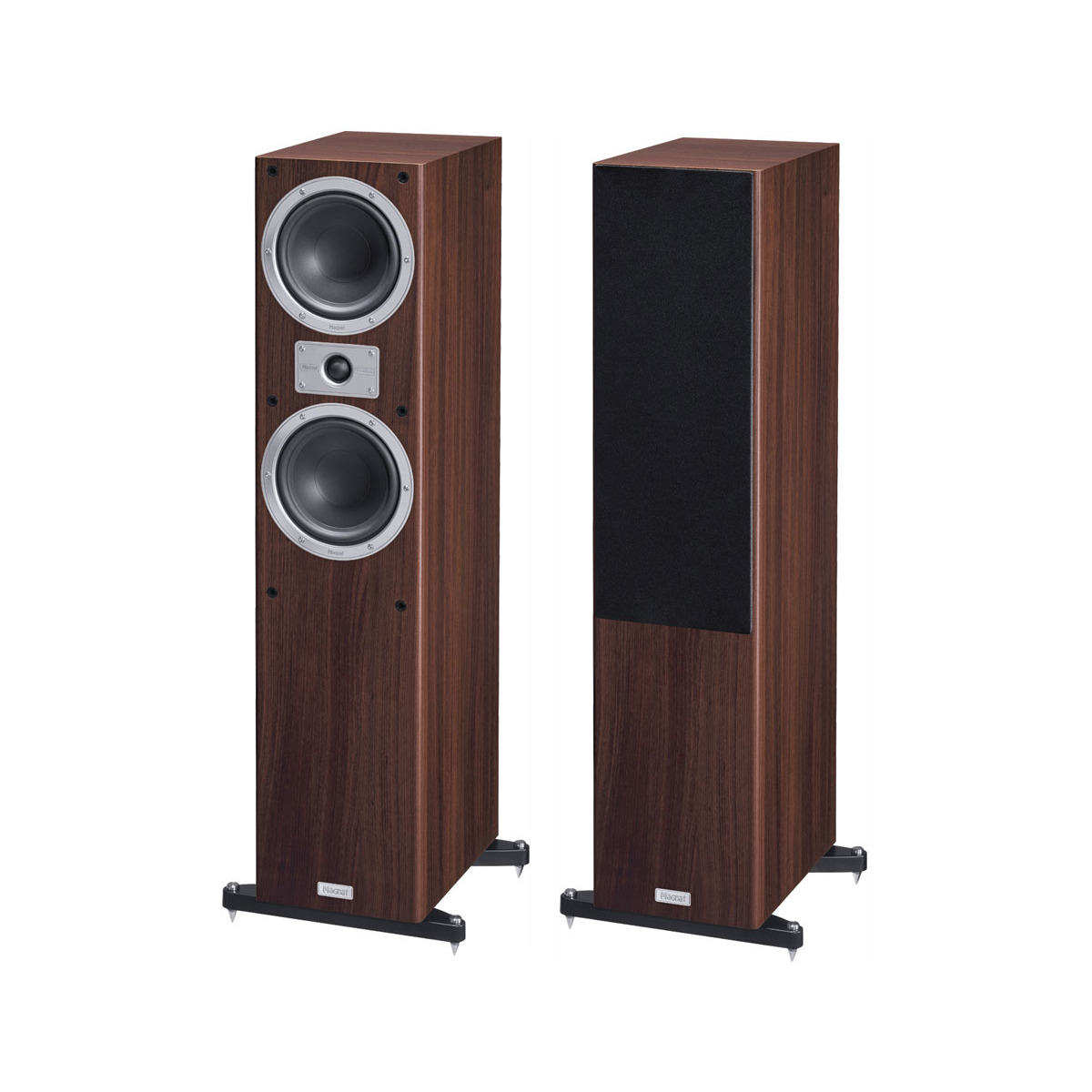

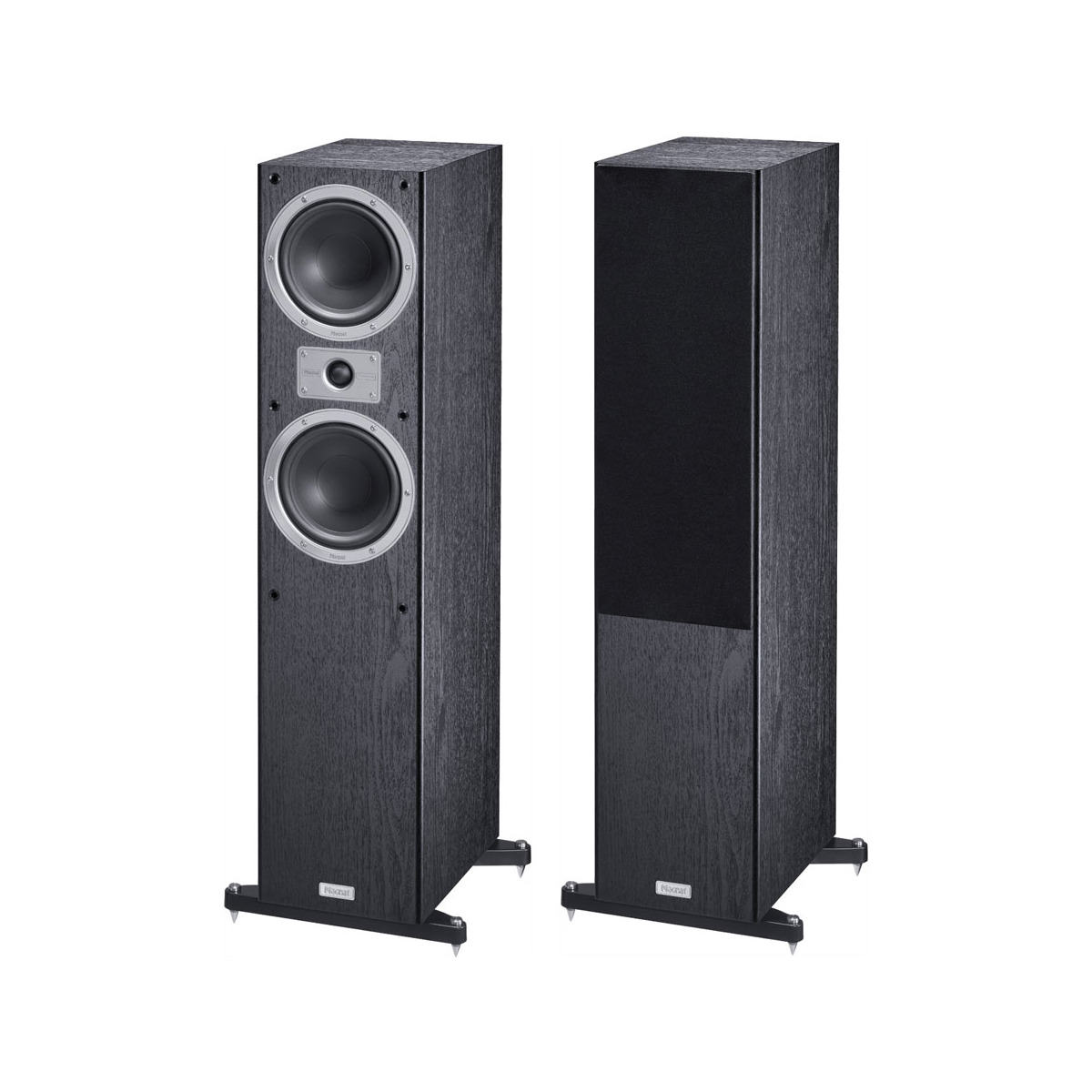

The Tempus 55 is designed as a compact 2.5-way floorstanding speaker and is equipped with two 170 mm FE Dynamics chassis. The Klippel-optimized, lightweight coated paper cone ensures an excellent resolution and optimum speed. A ventilated voice coil unit is utilized in this setup for maximum load capacity. The 25 mm fmax tweeter complements the bass-midrange drivers perfectly and generates an exquisite performance with its dispersion-optimized sound guide and powerful neodymium drive. The housing, which consists of E1-MDF panels, is very stable and boasts extremely low resonance properties. The integrated Airflex bass reflex ports minimize flow noise.
PRINCIPLE - 2 ½ way bass reflex
EQUIPMENT - 25 mm tweeter 170 mm woofer-midrange 1 x 170 mm woofer
POWER HANDLING (RMS/MAX.) - 150 / 280 watts
SENSITIVITY (2.8V/1M) - 92 dB
IMPEDANCE - 4 – 8 Ohms
FREQUENCY RESPONSE - 24 - 45.000 Hz
CROSSOVER FREQUENCIES - 350 / 3.300 Hz
RECOMMENDED AMPLIFIER OUTPUT - > 30 Watts
DIMENSIONS (WXHXD) - 200 x 880 x 320 mm 295 x 900 x 320 mm (incl. base)
WEIGHT - 13 kg
WOOFER / MIDRANGE - coated paper cone. Ventilated voice-coil unit for maximum capacity. Klippel® optimised construction. FE-Dynamics woofer-midrange. Solid metal basket with generous ventilation openings. Cover rings for bass and mid-range speakers in a high quality metal finish.
TWEETER - Newly developed 25 mm fmax dome tweeter with dispersion-optimized sound guide and powerful neodymium drive for an optimum resolution
CROSSOVER - Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components. Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts.
CABINET - Airflex port with rounded reflex opening to minimize annoying resonances. Solid low-resonance cabinet construction using E1-MDF panels.Removable cloth grille. Resonance damping rubber pucks and metal spikes included. Sturdy base struts for stability
