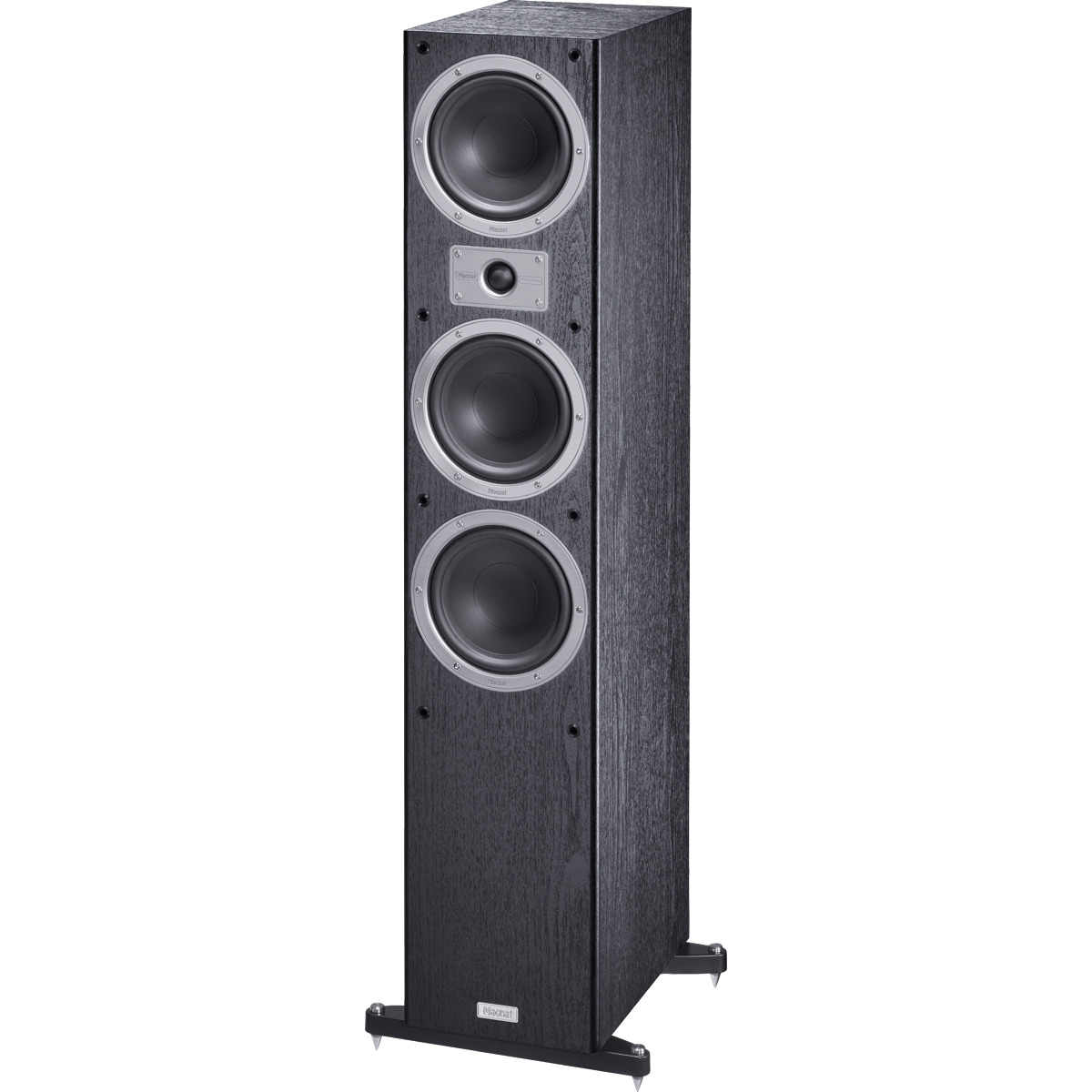

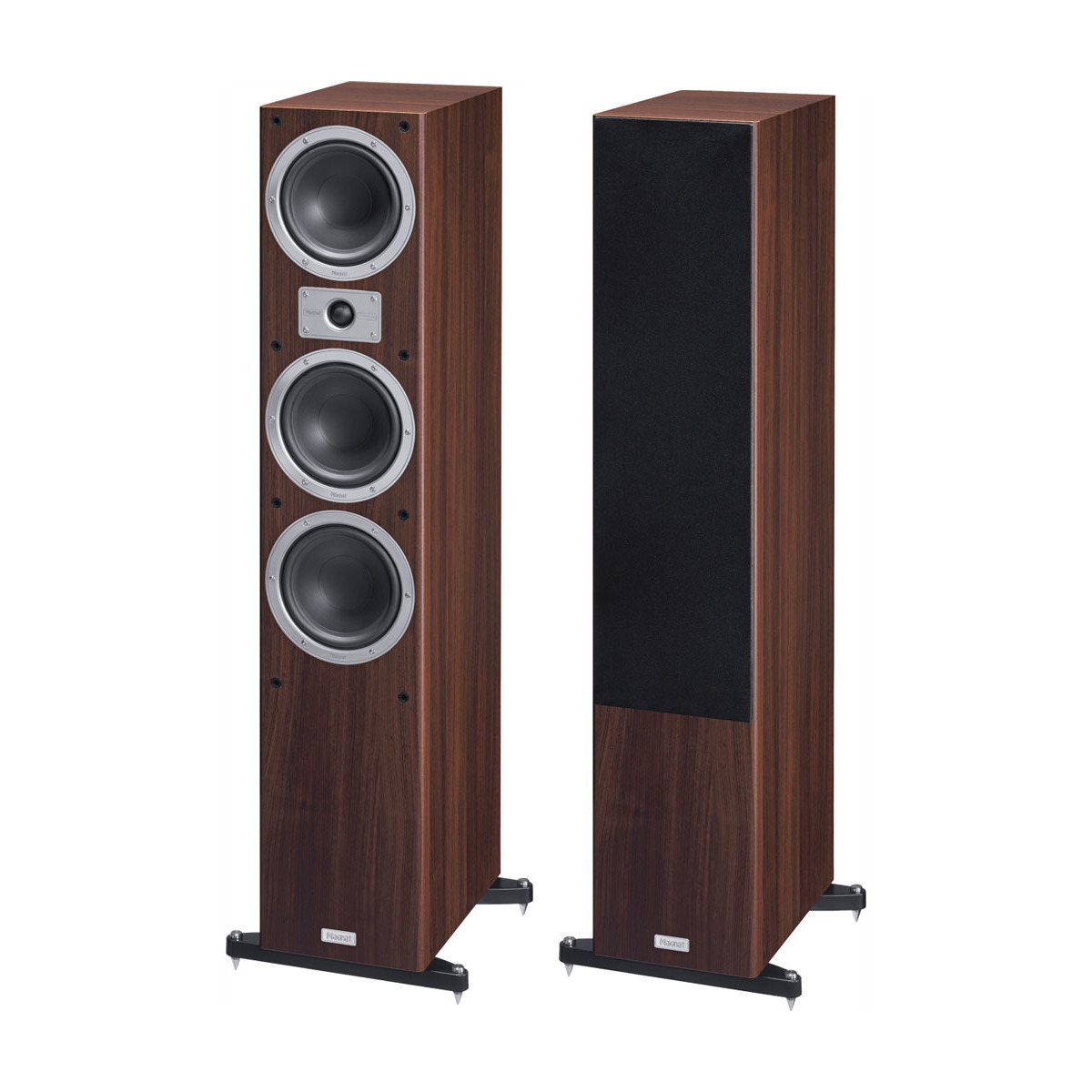

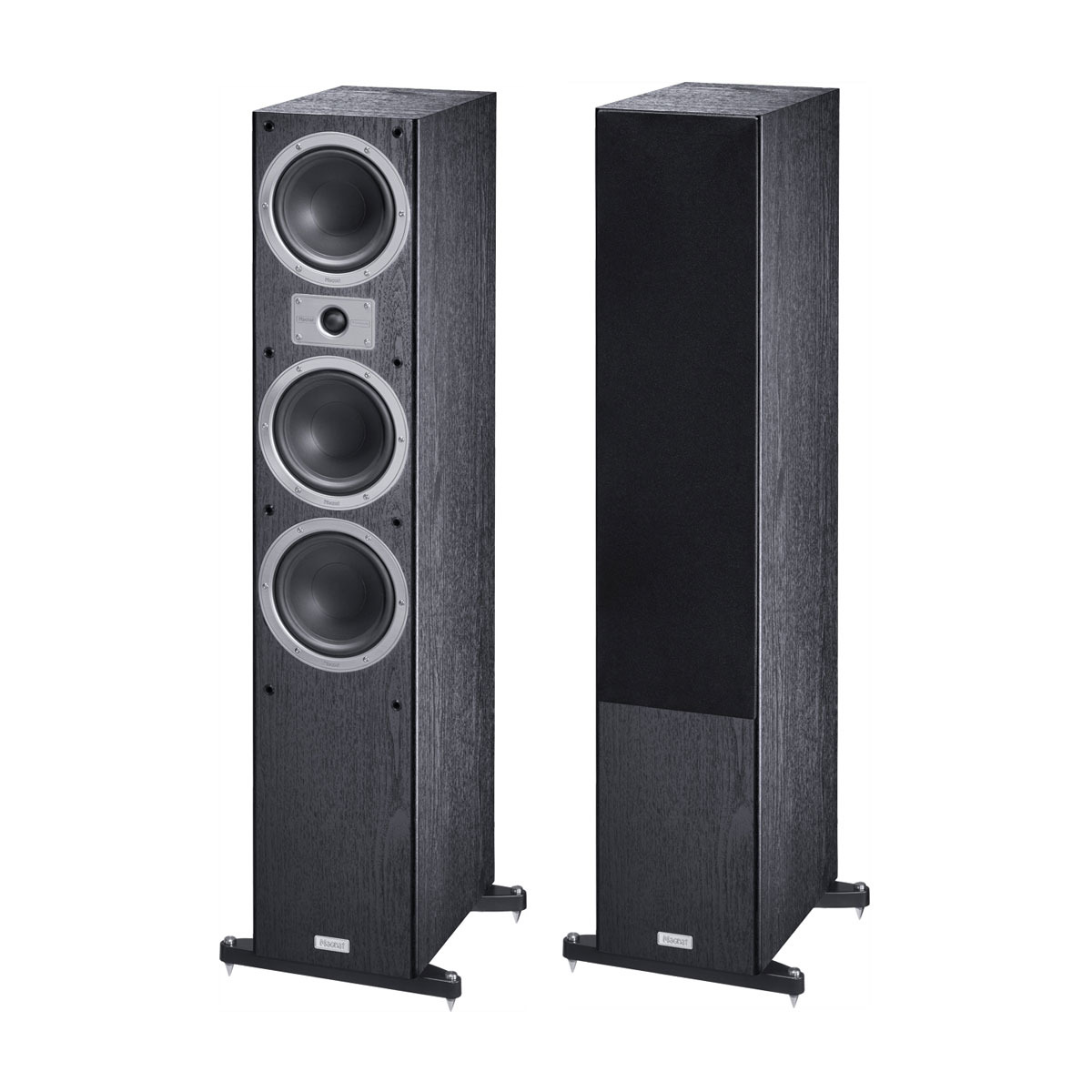

MAGNAT Tempus 77

Purchase this product

RRP: $1,899.95
Our Price: $1,804.95

Enquire about this product Print Product Information

3-WAY BASS REFLEX FLOORSTANDING SPEAKER


The top product of the Tempus range: high-quality hi-fi sound combined with timeless design


Powerful and detailed stereo sound thanks to meticulous development and coordination


Calotte de tweeter fmax 25 mm avec guidage du son à directivité optimisée et puissant entraînement néodyme pour une résolution exceptionnelle


Three Klippel-optimized 170 mm FE Dynamics chassis: 1 x woofer and 2 x subwoofers for very high resilience and precision


Particularly low-resonance enclosure structure made of E1 MDF timber boards including sturdy base struts with height-adjustable spikes


The flagship model, and of course the perfect choice of front speaker in a Tempus surround system, is the 3-way Tempus 77 bass reflex floorstanding speaker. The speaker, which stands slightly over 1 m in height, is equipped with two 170 mm FE Dynamics woofers and a mid-range driver of the same diameter. The Klippel-optimized construction ensures maximum load capacity and optimum precision in all frequency ranges. With its dispersion-optimized sound guide and powerful neodymium drive, the newly developed 25 mm fmax tweeter generates an exquisite resolution. The chassis are located in a sturdy, particularly low-resonance housing consisting of E1-MDF panels. Thanks to its excellent efficiency rating of 92 dB, the Tempus series permits a high degree of flexibility when it comes to selecting an amplifier.


PRINCIPLE - 3 way bass reflex


EQUIPMENT - 25 mm tweeter 170 mm midrange 2 x 170 mm woofer


POWER HANDLING (RMS/MAX.) - 175 / 320 watts


SENSITIVITY (2.8V/1M) - 92 dB


IMPEDANCE - 4 – 8 Ohms


FREQUENCY RESPONSE - 22 - 45.000 Hz


CROSSOVER FREQUENCIES - 320 / 3.300 Hz


RECOMMENDED AMPLIFIER OUTPUT - > 30 Watts


DIMENSIONS (WXHXD) - 200 x 1005 x 320 mm 295 x 1025 x 320 mm (incl. base)


WEIGHT - 15.5 kg


WOOFER / MIDRANGE - coated paper cone. Ventilated voice-coil unit for maximum capacity. Klippel® optimised construction. FE-Dynamics woofer-midrange. Solid metal basket with generous ventilation openings. Cover rings for bass and mid-range speakers in a high quality metal finish.


TWEETER - Newly developed 25 mm fmax dome tweeter with dispersion-optimized sound guide and powerful neodymium drive for an optimum resolution


CROSSOVER - Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components. Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts.


CABINET - Airflex port with rounded reflex opening to minimize annoying resonances. Solid low-resonance cabinet construction using E1-MDF panels.Removable cloth grille. Resonance damping rubber pucks and metal spikes included. Sturdy base struts for stability
