MAGNAT Signature 1109

Purchase this product

RRP: $10,499.95
Our Price: $9,974.95

Enquire about this product Print Product Information

HIGH-END 4-WAY BASS REFLEX LOUDSPEAKER FROM THE "SIGNATURE" REFERENCE SERIES


Largest floor-standing loudspeaker in Magnat´s new "Signature" reference class


Klippel-optimised high-tech 4-way system with the highest sound precision


2x20 cm subwoofers in a generous volume of air for perfect bass reproduction


Hi-Res AUDIO certification thanks to super-tweeter with reproduction up to 55 kHz


Highly modern design with silk matt lacquer and aluminium applications

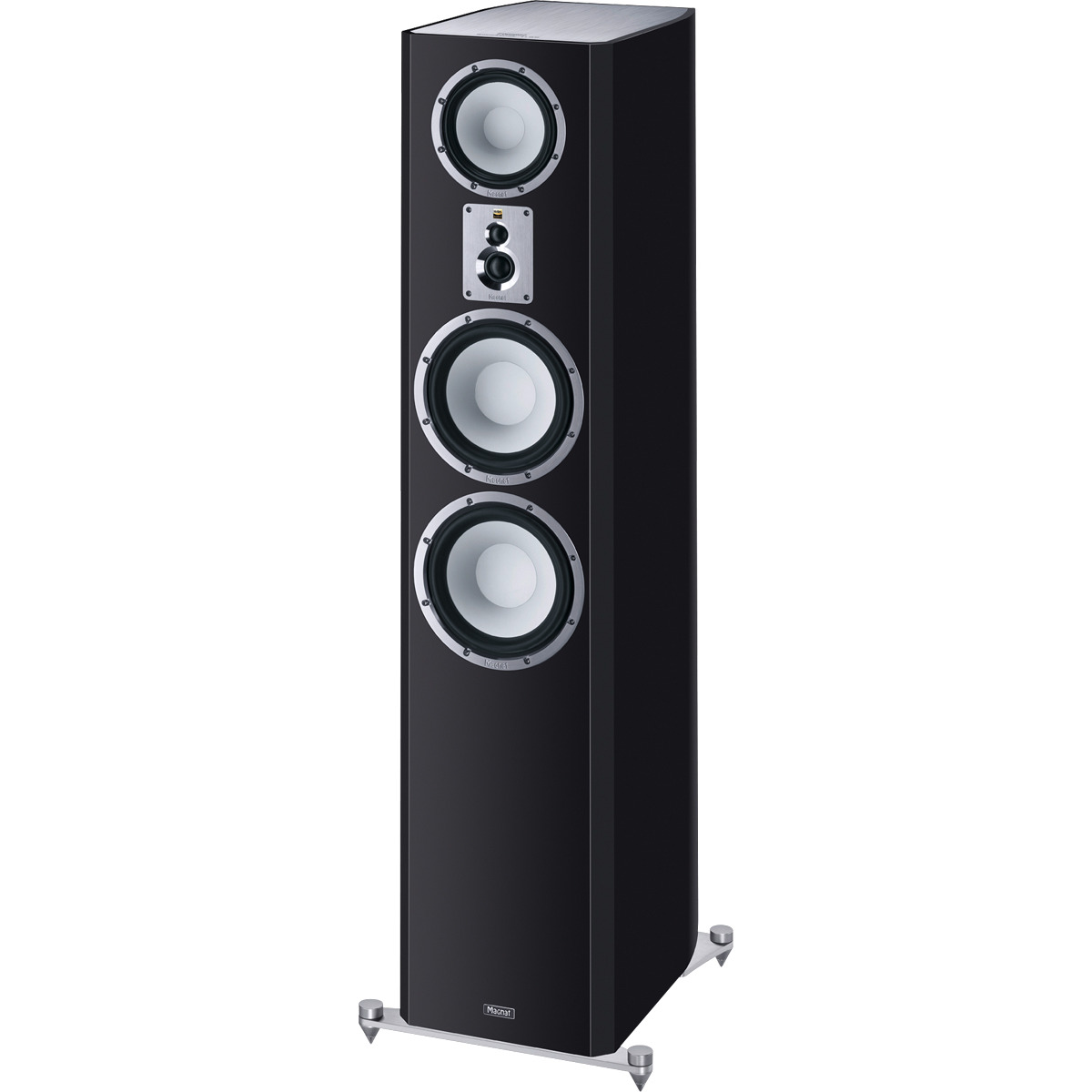

The Magnat Signature 1109 is the largest floor-standing loudspeaker in Magnat´s new "Signature" reference class. Generous volumes and the driver components with 2 x 200 mm subwoofers as well as a 170 mm mid-range driver guarantee wide, spatial sound of the highest precision. Thanks to the special new tweeter module comprising two fmax Signature tweeters, the Signature 1109 reaches into the super-treble range of 55 kHz, also enabling it to secure the much sought-after Hi-Res Audio certification. Housed in a stylish enclosure with a silk-matt surface in black or white, the loudspeaker also displays its absolute top quality from the visual aspect. This speaker delights both the ears and the eyes.


PRINCIPLE - Floorstanding Speaker, 4 way, double bass, bass reflex


EQUIPMENT - 0.75" super-tweeter 30 mm tweeter 170 mm midrange 2 x 8” woofer


POWER HANDLING (RMS/MAX.) - 300 / 550 Watts


SENSITIVITY (2.8V/1M) - 94 dB


IMPEDANCE - 4 – 8 Ohms


FREQUENCY RESPONSE - 20 – 55000 Hz


CROSSOVER FREQUENCIES - 340 Hz/2.300 Hz/18500 Hz


RECOMMENDED AMPLIFIER OUTPUT - > 30 Watts


DIMENSIONS (WXHXD) - Enclosure: 275 x 1250 x 410 mm Enclosure incl. Spikes: 375 x 1280 x 410 mm


WEIGHT - 42,5 kg


TWEETER & SUPER-TWEETER -

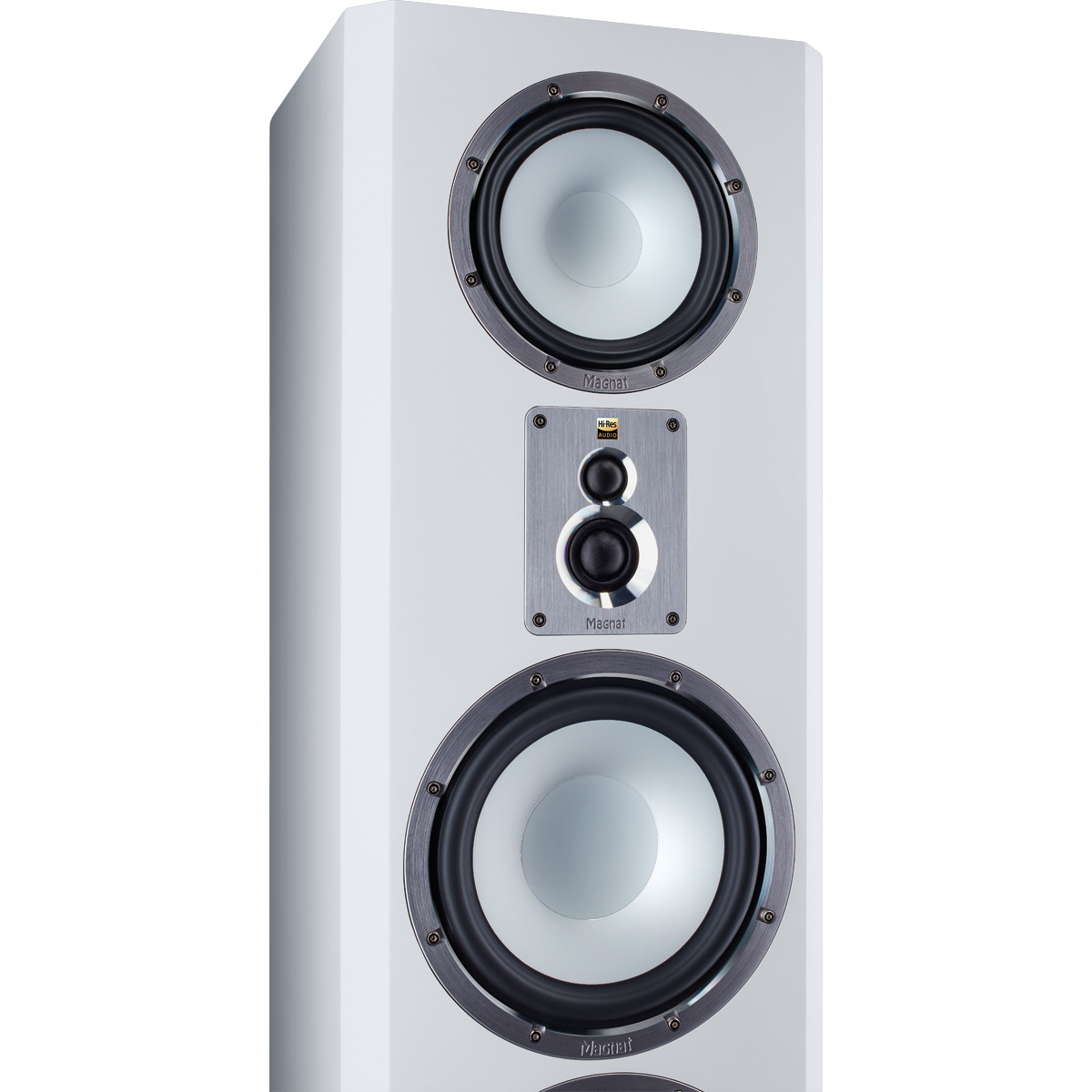

Newly developed high-res tweeter module with two fmax Signature dome tweeters


30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling


Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 55 kHz


Powerful neodymium ring magnet systems for excellent dynamics


Special sound guides in the solid aluminium front panel for optimum dispersion characteristics


WOOFER / MIDRANGE -


Well-ventilated die-cast basket to prevent turbulence and compression effects


„Controlled Flexing Cone“: Cone geometry for controlled dispersion of bending waves in the midrange, and with it the capability to reproduce a greater bandwidth


Sophisticated voice coil ventilation for a particularly high degree of resilience


Distortion-optimised magnet systems with double induction rings and stray field optimisation


Non-conductive voice coils to minimise eddy current loss


Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps


Solid aluminium grille rings with 8 screw fixings


CROSSOVER -


High-quality interior cabling

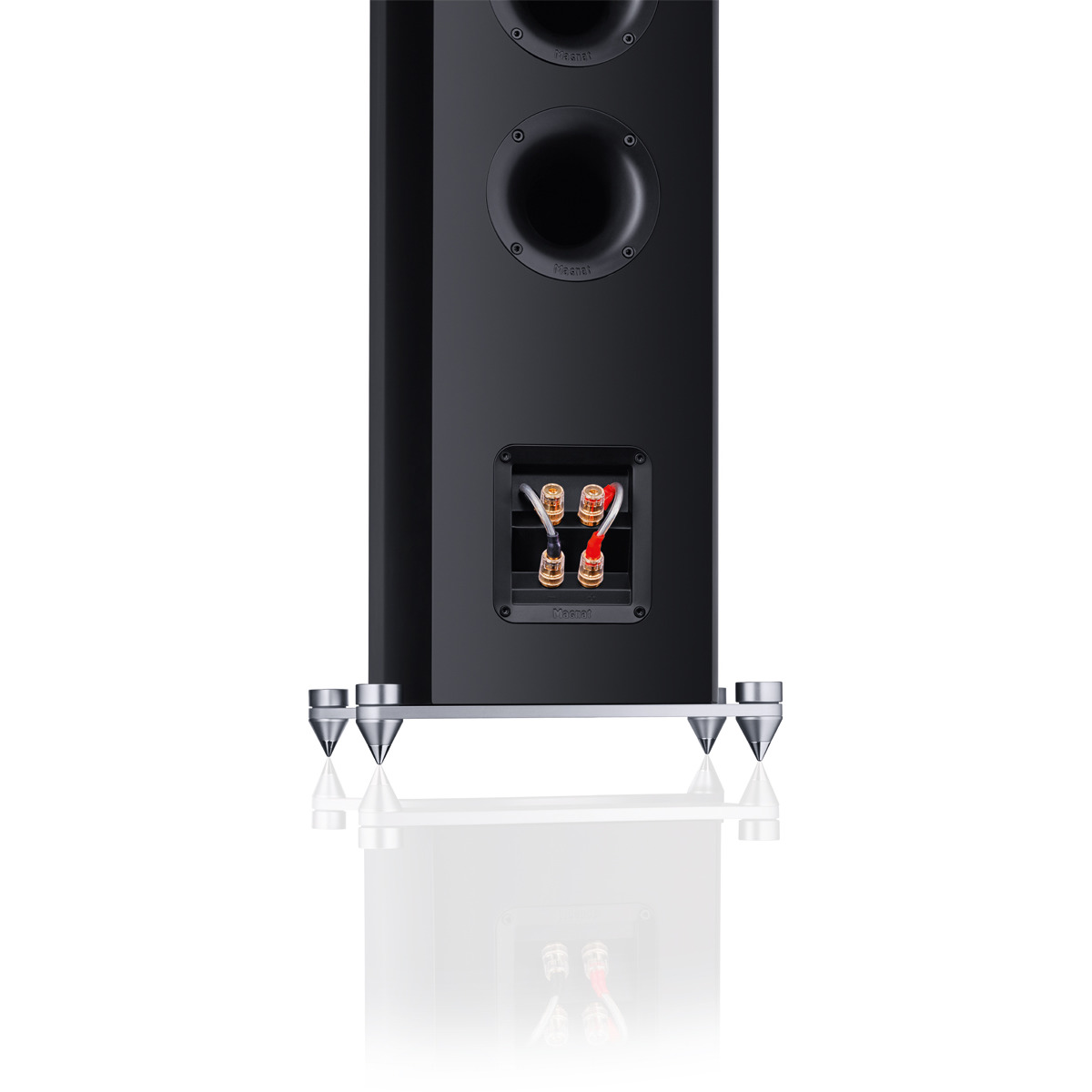

Large terminal panel with solid and encapsulated connectors to accommodate the use of high-quality heavy gauge cables


Elaborate phase and amplitude-optimised APOC crossover with audiophile coils and PP capacitors


Bi-wiring/bi-amping option, pre-installed cable bridges for single wiring


CABINET -


Detachable cloth grille with optimized acoustic transmissivity and hidden magnetic fixing


Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design


Body with stylish silk matt lacquer

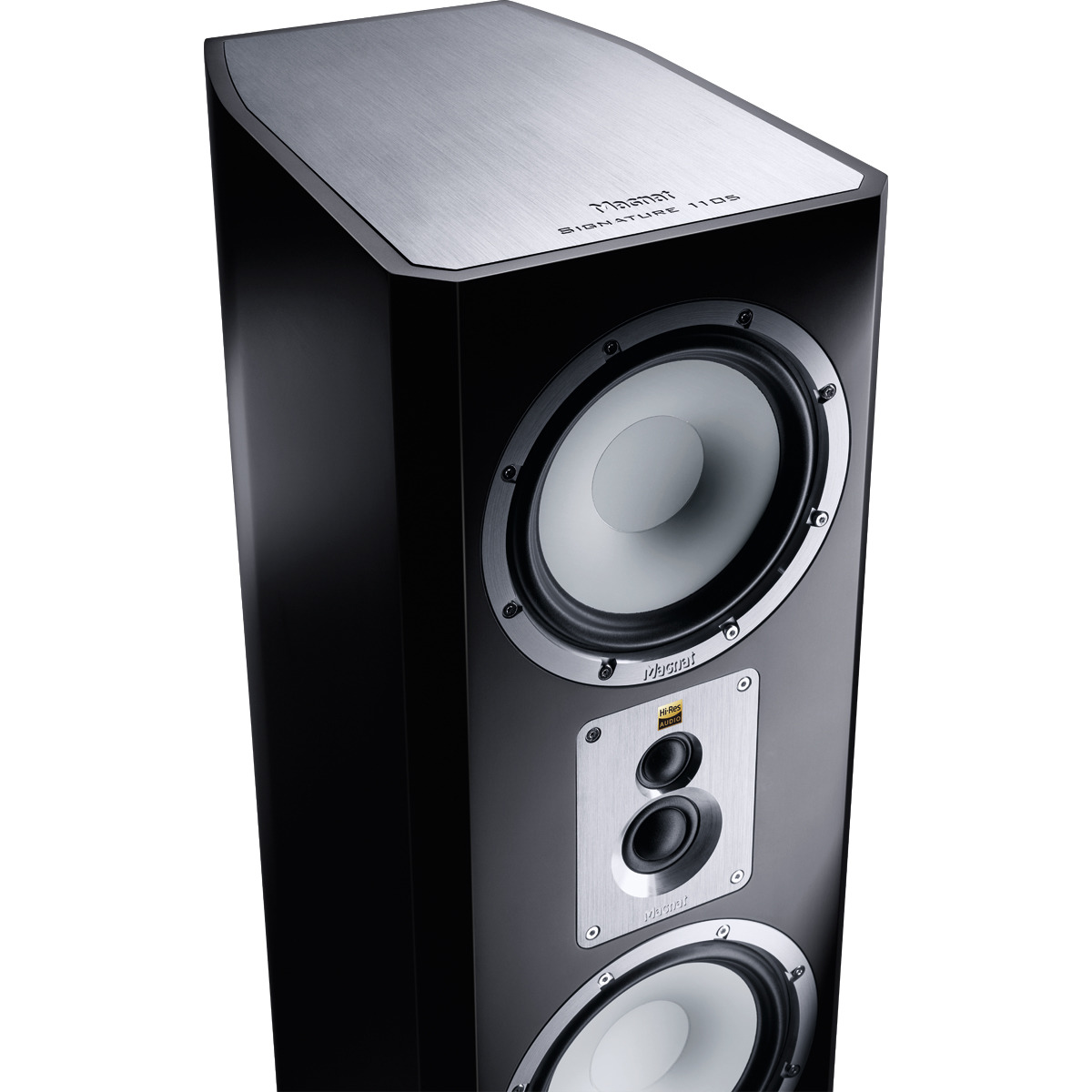

Aluminium cover plate with brushed surface and milled-in model name


Two Magnat Airflex ports with large openings ensure an optimum bass response without ambient noise


Two solid aliminium base transoms with matt surface


Height-adjustable, counter-locked solid metal spikes with replaceable tips for optimum stability on all floors


Decoupling silicone feet and metal spikes included


CABINET SURFACE -

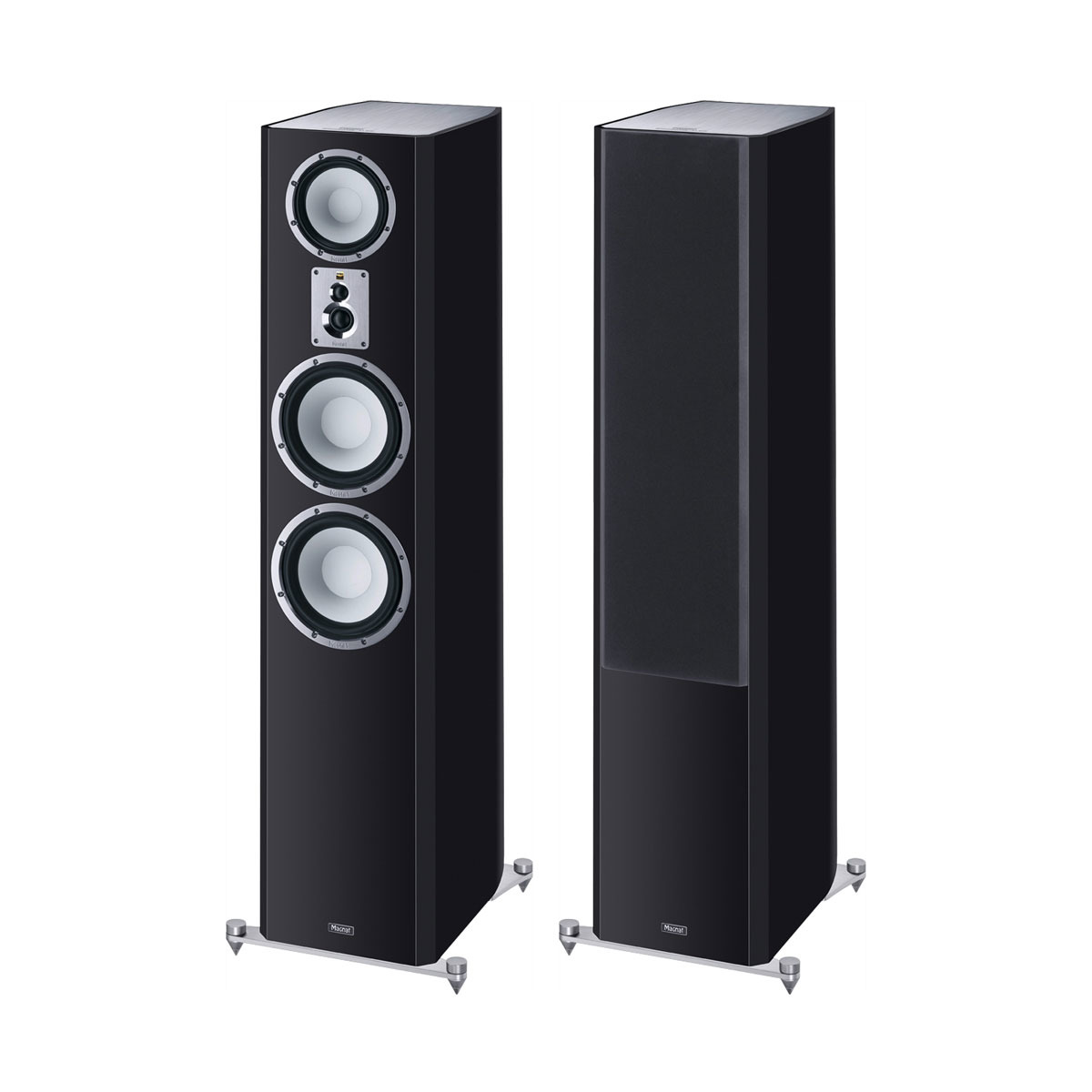

Black satin

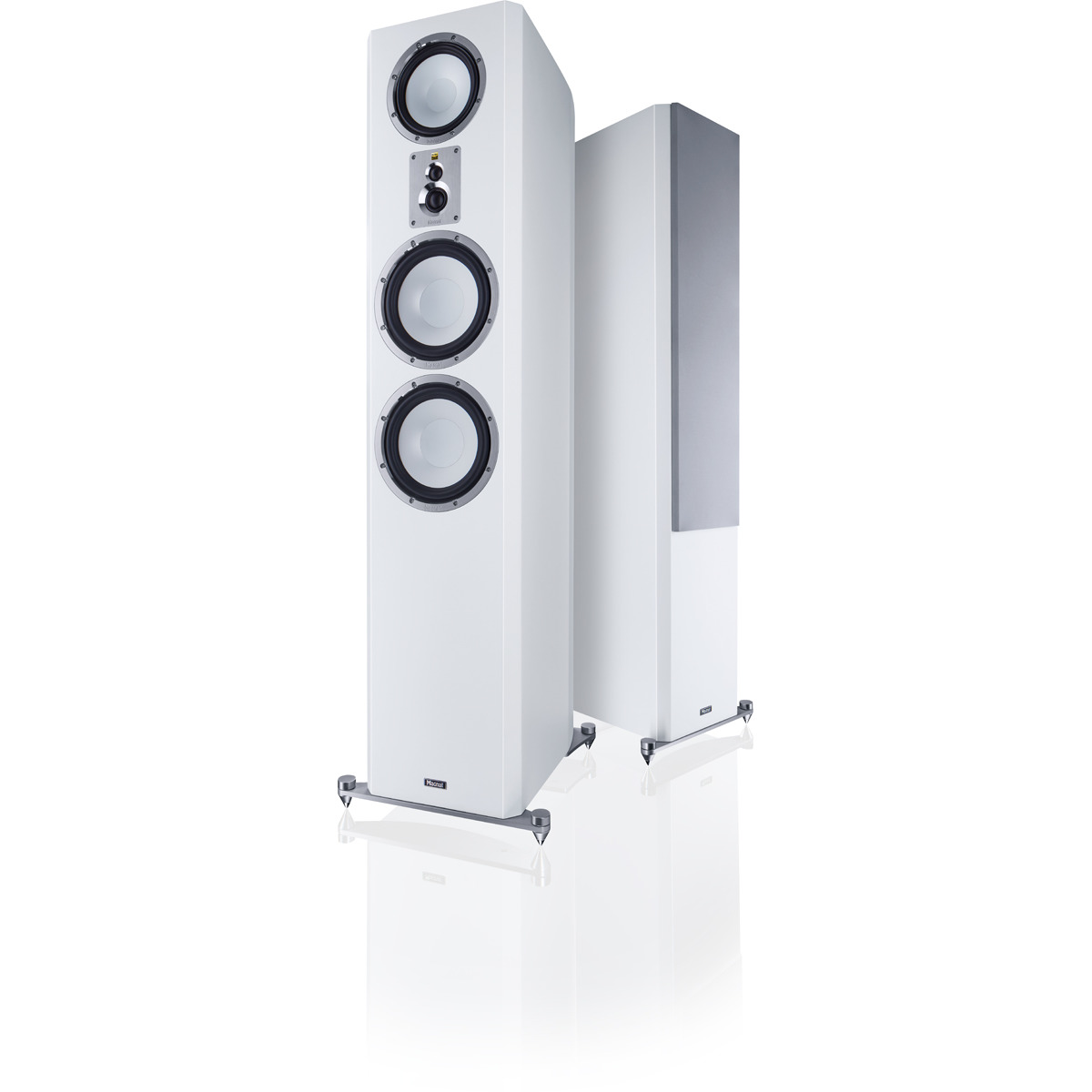

White satin
