HIGH-END HYBRID INTEGRATED AMPLIFIER WITH VALVE PRE-STAGE AND BLUETOOTH® APTX™
Audiophile high-end stereo hybrid amplifier
Valve sound and transistor power harmoniously combined
Digital section with Burr-Brown converter and Bluetooth 4.0 with aptX
High-quality solid metal enclosure with 8 mm front panel
Pre-out, Main-in, Phono pre-amplifier for MM and MC
The Magnat RV 4 hybrid amplifier combines audiophile sound demands and high performance in a perfect way: The combination of the valve pre-stage and transistor output stage ensures the coveted ´warm´ analogue sound characteristics with high output power at the same time for the best possible dynamics. RV 4 owners have the choice between numerous analogue inputs, including MM and MC, but also have the option of coaxial and optical digital access. The fact that the high-end Burr-Brown converter is also used for the Bluetooth 4.0 input with aptX is a further highlight. This high-end stereo amplifier thus combines feel and ease of use with the highest audiophile demands of both the analogue and the digital world.
OUTPUT POWER / NOMINAL - 20 Hz – 20 kHz, THD < 1.0%, 4 Ohm, 2 x 150 W 20 Hz – 20 kHz, THD < 1.0%, 8 Ohm, 2 x 110 W
POWER CONSUMPTION - 350 W
PEAK - 1 kHz, 4Ω: 2 x 250 W
FREQUENCY RESPONSE - CD/Tuner/Aux/Line/Tape/Digital: 8 Hz – 110 kHz (-3.0 dB), 20 Hz – 20 kHz (+/-0.1 dB) Phono: 20 Hz – 20 kHz (+/-0.2 dB) Subsonic Filter: 16Hz, 18 dB/Oct.
INPUT SENSIVITY - Phono MM: 2,5mV/47kΩ Digital: -13.5 dBFS Phono MC: 0.25 mV/470 Ω
DIGITAL INPUTS - optical (Toslink™) coaxial (cinch) Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz Supported bit depth: 16/24bits
BLUETOOTH® INPUT - Bluetooth® 4.0 / Qualcomm® aptX™
MAINS VOLTAGE - 230 VAC / 50 Hz
S/N RATIO - CD/Tuner/Aux/Line/Tape: 110 dB (A) Phono MM: 90 dB Phono MC: 78 dB
COLOR - Black
DIMENSIONS (WXHXD) - Main unit: 434 x 157 x 360 mm (410 mm incl. controls and connectors) Remote control: 40 x 100 x 16mm
WEIGHT - 18.5 kg
HIGHLIGHTS -
Combines an audiophile tube preamplifier and a high-performance transistor output stage
Perfectly tuned, audiophile components ensure a very harmonious sound
Audiophile tube preamplifier with two high-end low-noise tubes (E88CC) produced in Russia
Modern connectivity with digital section and Bluetooth® input (4.0) with the high-end audio standard Qualcomm® aptX™
Discrete high-end phono preamplifier with separate inputs for MM and MC systems
High-quality Burr-Brown digital-analogue converter
Stylish solid metal remote control for volume, input selection and mute function
AMPLIFIER AND POWER SUPPLY -
Discrete high-performance amplifier with high quality power transistors from Sanken (Japan)
Output rating of 150 watts of sine power per channel (4 ohms), max. total peak power of 500 watts
Elaborate power supply with separately stabilised supply voltage for the individual circuits
Performance-optimised high-capacity buffer capacitors from Vishay/BC-Components
Generously dimensioned toroidal transformer in a vibrationresistant and air-tight configuration

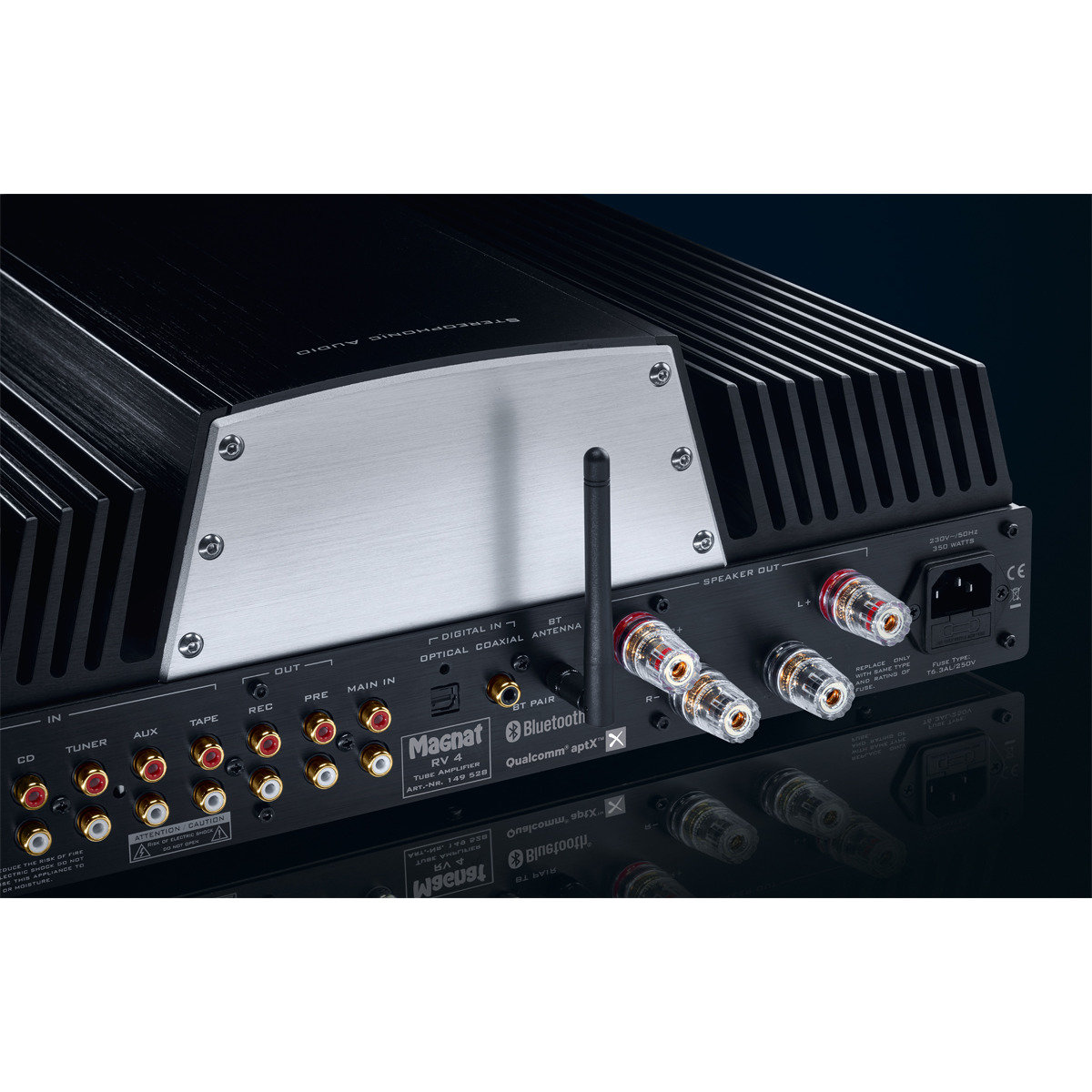

CONNECTIONS -
Phono MM and MC inputs
4 high-level inputs
Power amplifier input (Main In) for an easy integration into a home cinema system
Preamplifier output (Pre Out) for connecting subwoofers or additional power amplifiers
Additional fixed level output (Rec Out)
Headphone output with high quality 6.3 mm jack
Output terminal with large, insulated speaker screw terminals
CABINET - Two solid heatsinks and a solid aluminium cover for transformer and power supply capacitors, Sturdy solid metal housing with 8 mm front panel, Solid aluminium control elements, High-contrast „Organic LED“ display
