SHELF LOUDSPEAKER, 2-WAY BASS REFLEX
Outstanding all-rounder: Compact loudspeaker in the Quantum 750 range
Hi-fi sound in the smallest of spaces and with a stylish design
25 mm fmax fabric tweeter with extended frequency range
Distortion-optimized 170 mm ceramic-aluminium cone woofer for precise bass and voice reproduction

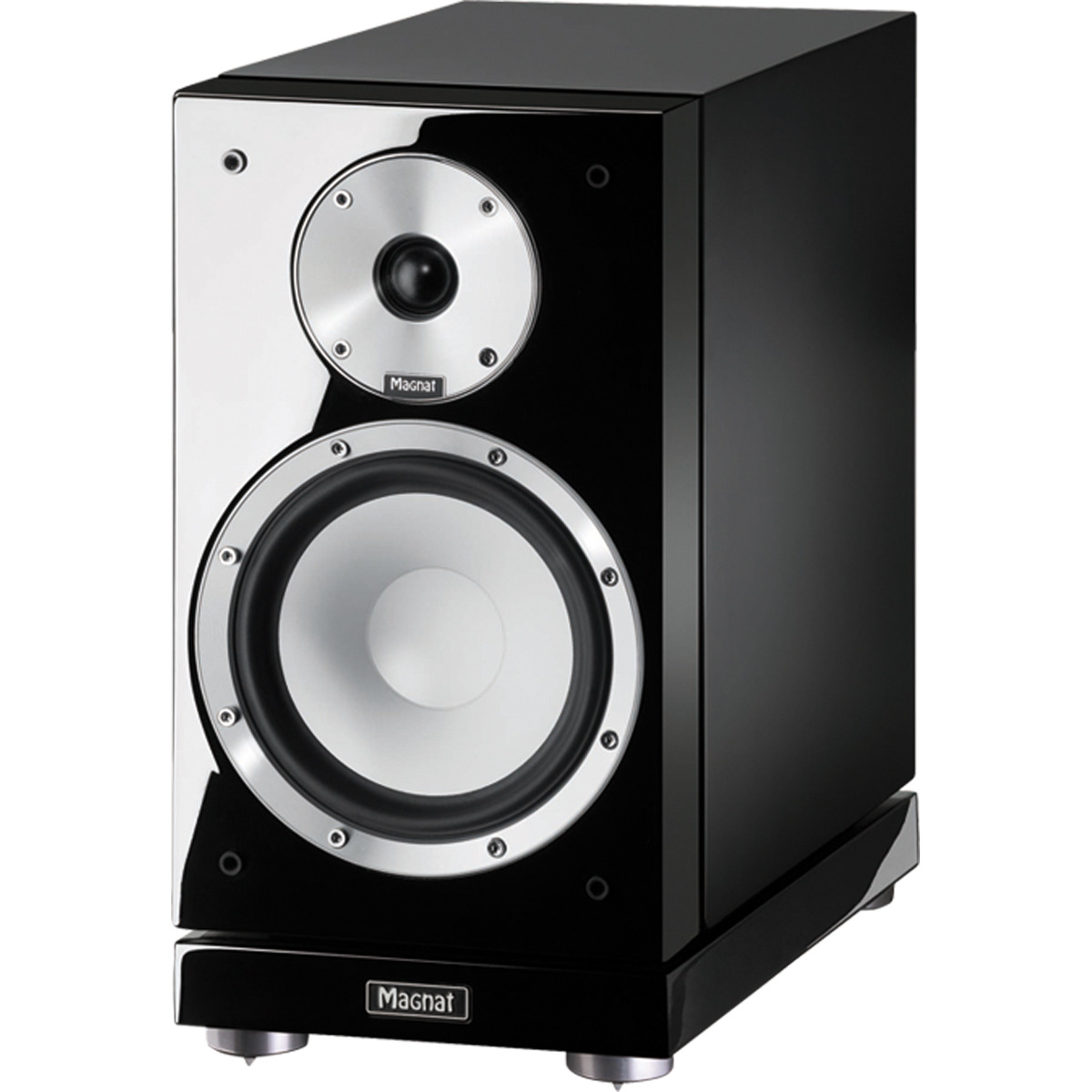

The Quantum 753 is the high-quality compact loudspeaker in the Quantum 750 series. Besides the extremely low-resonance 40 mm case front on a stiffened corpus, it offers a clear and modern language of shape that is available in perfect high-gloss or silk-matt varnish finishes. The latest-generation computer-optimised loudspeaker chassis deliver an uncompromisingly clean and dynamic sound.
PRINCIPLE - 2 way bass reflex
EQUIPMENT - 25 mm tweeter 170 mm woofer-midrange
POWER HANDLING (RMS/MAX.) - 120 / 180 watts
SENSITIVITY (2.8V/1M) - 91 dB
IMPEDANCE - 4 – 8 Ohms
FREQUENCY RESPONSE - 30 – 50000 Hz
CROSSOVER FREQUENCIES - 2800 Hz
RECOMMENDED AMPLIFIER OUTPUT - > 20 Watts
DIMENSIONS (WXHXD) - 190 x 362 x 335 mm
WEIGHT - 9.2 kg
WOOFER / MIDRANGE - Ceramic/aluminium cones for best reproduction quality, Ventilated high-performance voice-coils ensure a high degree of operational reliability Airflow-optimized, non-magnetic aluminium die-cast baskets to prevent turbulence and resonance effects
TWEETER - fmax tweeter with increased frequency range, Solid aluminium/ABS flange with optimized acoustic transmission. Damped pole piece hole, Dual compound fabric cone
CROSSOVER - Elaborated phase and amplitude optimized crossover with selected high-quality components. High-quality interior cabling
CONNECTIONS - Bi-Wiring, Bi-Amping Option, Large terminal panel with solid and encapsulated connectors to accommodate the use of high-quality heavy gauge cables

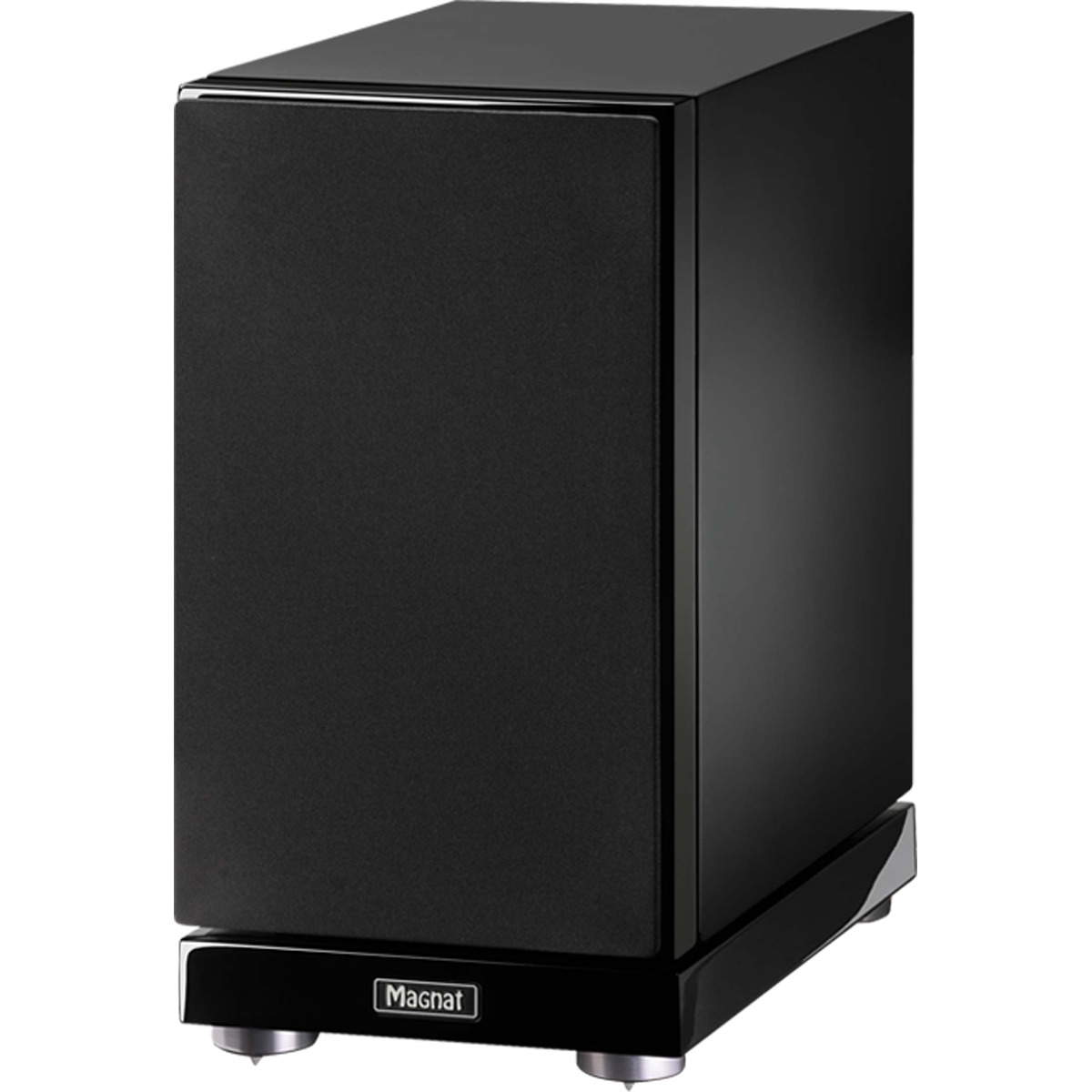

CABINET - Airflex ports with extremely wide openings for optimized bass connection. Big rubber resonance absorbers. Very solid and elegant construction using MDF panels and elaborated struttings. 35 mm base plate in high gloss painting finish. 45 mm double-layer baffle in high gloss painting finish, Detachable grill
