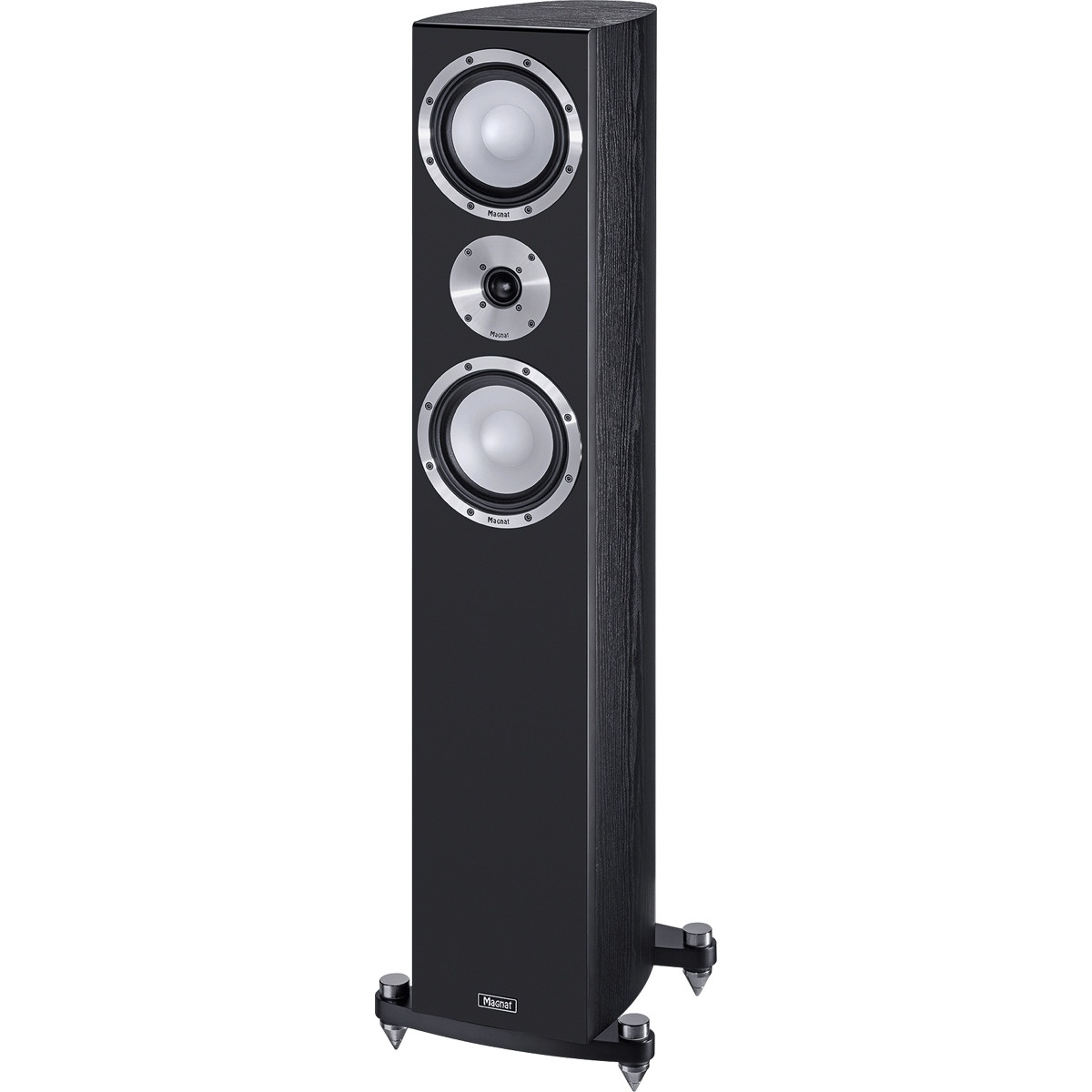

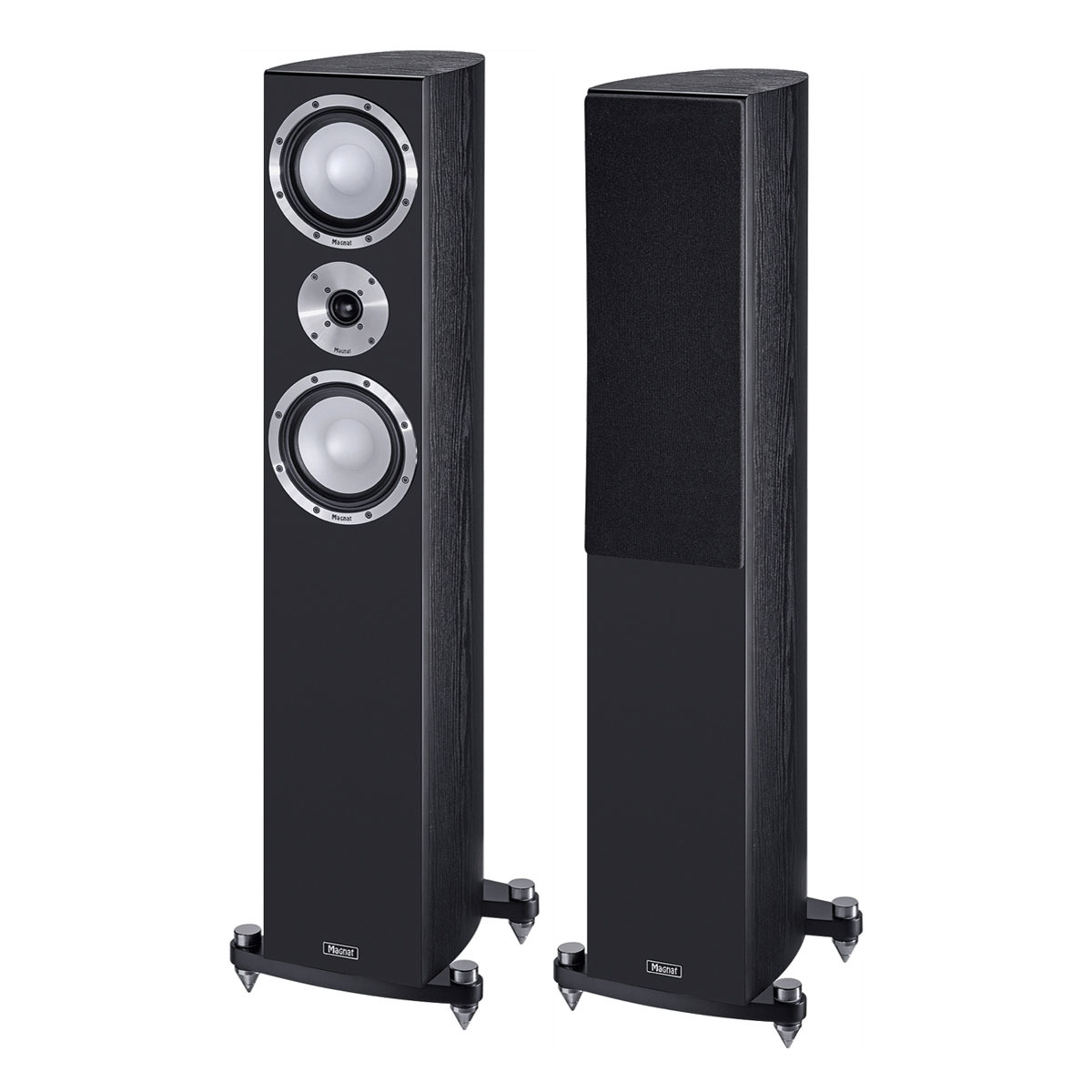

MAGNAT Quantum 725

Purchase this product

RRP: $2,499.95
Our Price: $2,374.95

Enquire about this product Print Product Information

2.5-WAY BASS-REFLEX LOUDSPEAKER


Quantum Stereo floor-standing loudspeaker in a stylish design and with the highest quality components for stylish, audiophile music enjoyment


Dynamics, precision, power: Magnat Quantum stands for high-end sound, and this loudspeaker more than lives up to its reputation


30 mm fabric dome with special damping and ferrofluid cooling, wide surround and Harmonic Radiation Horn (HRH) made of aluminium


Two Klippel-optimized 170 mm chassis with ceramic-aluminium cone: 1 x woofer and 1 x subwoofer for maximum resilience and precision


Sturdy, rounded MDF enclosure with low-resonance 25 mm baffle in a silk-matt design and traverse system with height-adjustable spikes


With an enclosure rounded at the sides and rear, silk-matt lacquered baffle, magnetically secured fabric cover – the Quantum 725 2.5-way bass-reflex loudspeaker boasts a very elegant visual appearance. And outstanding acoustic qualities: While a 30 mm HRH fabric tweeter with special damping and ferrofluid cooling provides for excellent transparency and resolution in the upper frequency ranges, two 170 mm diameter FE Dynamics drivers together take care of the bass ranges, with only the upper chassis responsible for the mid-tone range. Thanks to the ventilated voice coil and generous vents in the sturdy metal basket, the Klippel-optimised drivers with ceramic-aluminium membranes ensure high load capacity values.


PRINCIPLE


2 ½ way bass reflex


EQUIPMENT - 30 mm tweeter 170 mm woofer-midrange 1 x 170 mm woofer


POWER HANDLING (RMS/MAX.) - 180 / 320 watts


SENSITIVITY (2.8V/1M) - 92 dB


IMPEDANCE - 4 – 8 Ohms


FREQUENCY RESPONSE - 22 - 52.000 Hz


CROSSOVER FREQUENCIES - 260 Hz, 3.200 Hz


RECOMMENDED AMPLIFIER OUTPUT - > 30 Watts


DIMENSIONS (WXHXD) - 290 x 1030 x 310 mm (incl. base) 200 x 975 x 310 mm


WEIGHT - 16.5 kg


MIDRANGE-WOOFER - FE-Dynamics woofer-midrange, Ceramic-aluminium cone, Ventilated voice-coil unit for maximum capacity, Klippel® optimised construction, Solid metal basket with generous ventilation openings, Solid aluminum cover rings


TWEETER - HRH tweeter with 30 mm cloth dome, special damping and ferrofluid-cooling, big surround and aluminium Harmonic Radiation Horn


CROSSOVER - Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components, Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts


CABINET - Airflex port with rounded reflex opening to minimize annoying resonances, Baffle in semi-gloss lacquering, Solid and substantially braced MDF cabinet with rounded side panels and 25 mm low-resonance baffle, Detachable cloth grille with optimized acoustic transmissivity and hidden magnetic fixing, Solid cross beams made of painted MDF with height-adjustable massive metal cone spikes, Exchangeable metal/rubber spike tips for an optimum adaptation to the floor type
