ACTIVE BASS REFLEX SUBWOOFER

More is better: A 38 cm woofer provides for a powerful deep bass foundation

A 30 kg bass power house for punchy bass reproduction up to 17 Hertz

38 cm high-power long excursion woofer with coated and hardened paper membrane as well as a Klippel-optimized magnet system

300 watts of pulse power for dynamic, action-packed scenes

Sturdy MDF enclosure with elaborate bracing and integrated feet with a silicone base

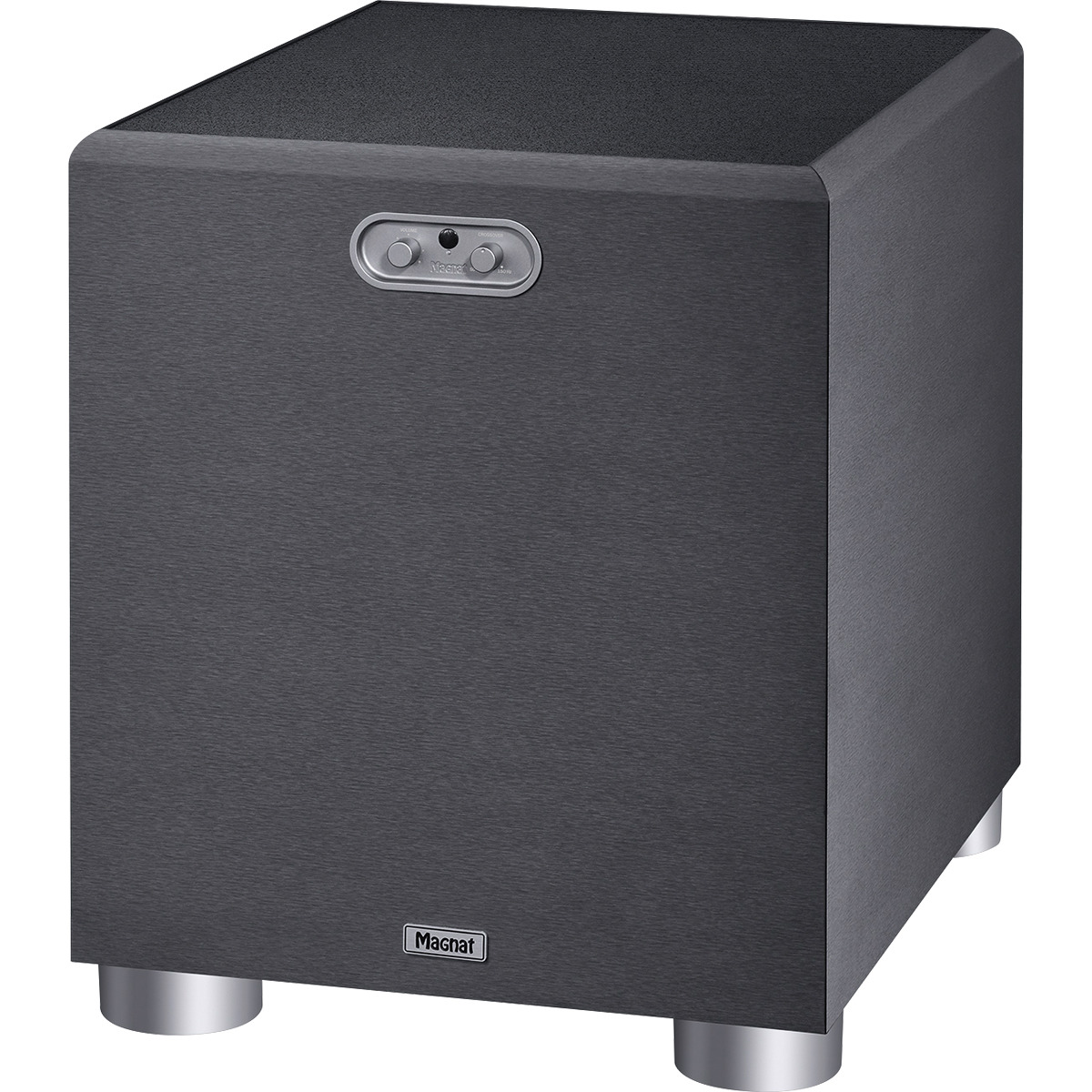

There is no substitute for the cone surface area – except a bigger cone surface area! The New Omega 380 bass reflex subwoofer comes with a whopping 38 cm cone surface area, while its chassis is naturally equipped with a Klippel-optimized magnet system and a ventilated high-performance voice coil for maximum power. The New Omega 380 is not only capable of delving down to 17 Hz thanks to its coated and hardened paper cone, but it also generates an extremely precise and richly textured deep bass range. The subwoofer, which is accommodated in a sturdy MDF housing, operates according to the down-firing principle and its front panel is equipped with an LED status display. The supplied remote control can be used to switch the subwoofer on and off and also adjust the level of the built-in high-power amplifier.

PRINCIPLE - Powered bassreflex subwoofer, down-fire

EQUIPMENT - 380 mm Woofer

OUTPUT POWER (RMS/MAX.) - 150 / 300 watts

FREQUENCY RESPONSE - 17 - 200 Hz

CROSSOVER FREQUENCIES - 50 - 150 Hz adjustable

PHASE - switchable 0°/180°

DIMENSIONS (WXHXD) - 458 x 545 x 620 mm

WEIGHT - 30,5 kg

CABINET SURFACE - Black textured veneer

WOOFER / MIDRANGE - Coated and hardened paper cone for deep and dynamic reproduction. Ventilated high-performance voice-coils ensure a high degree of operational reliability. 380 mm high-power long-throw woofer with Klippel®-optimized magnet system.

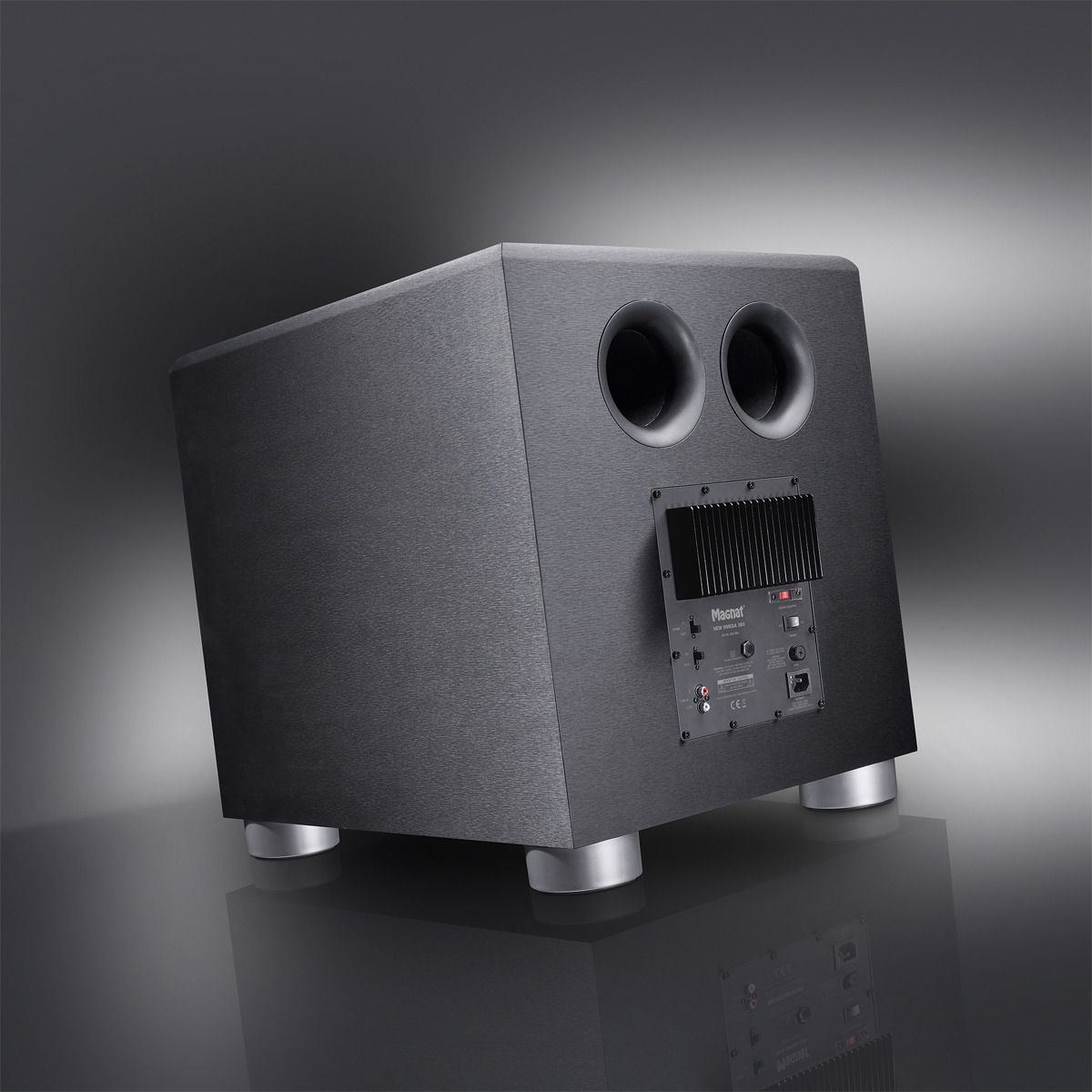

CABINET - Sturdy MDF housing with elaborate bracing and decorative veneer (body: Hairline texture, top: Leather texture). Sturdy MDF housing with elaborate bracing and decorative veneer (body: Hairline texture, top: Leather texture) ´Down-firing´ principle. Two generously dimensioned Airflex ports with low flow resistance. Sturdy feet with large silicon base.

AMPLIFIERS

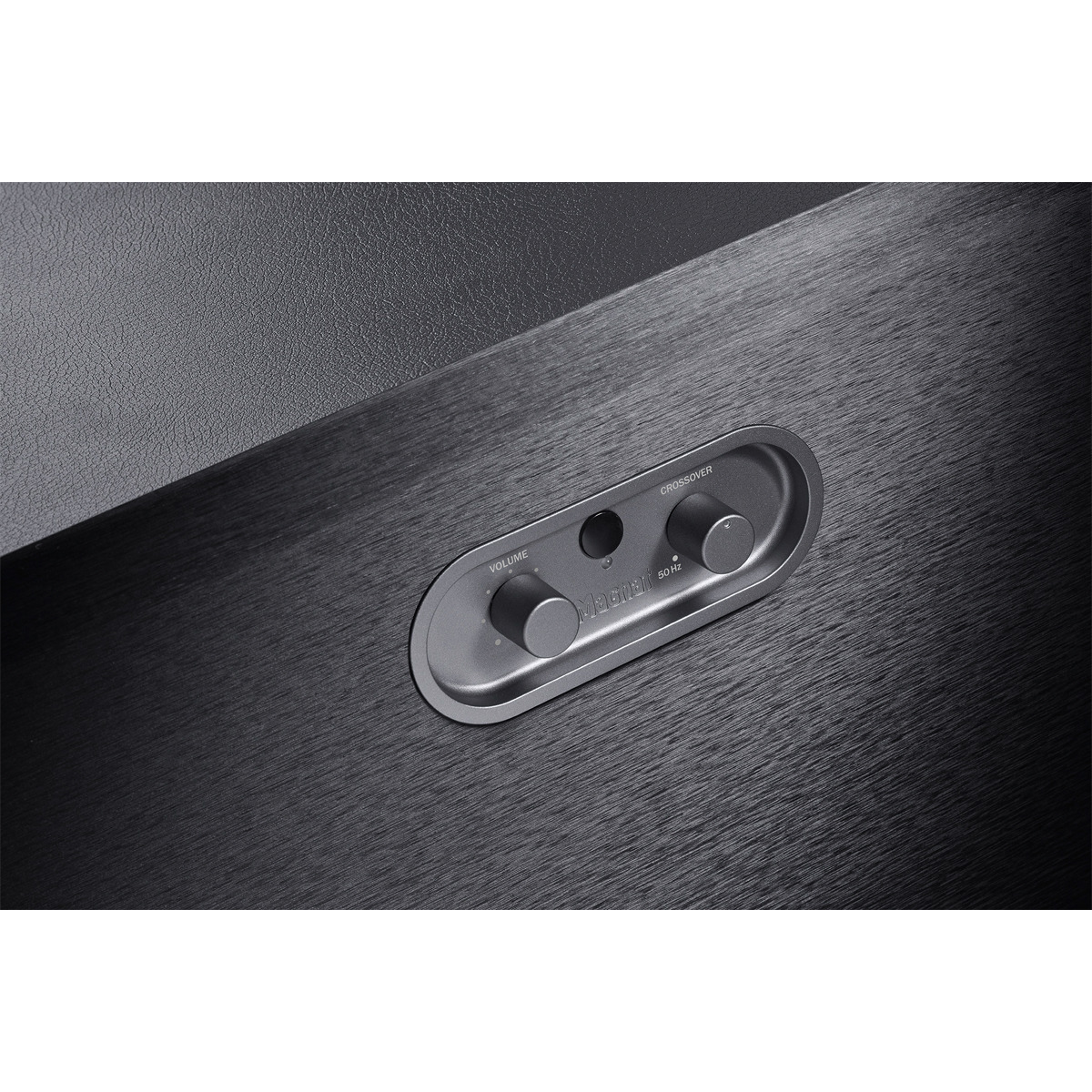

Front panel with LED status display and controls for volume and crossover frequency

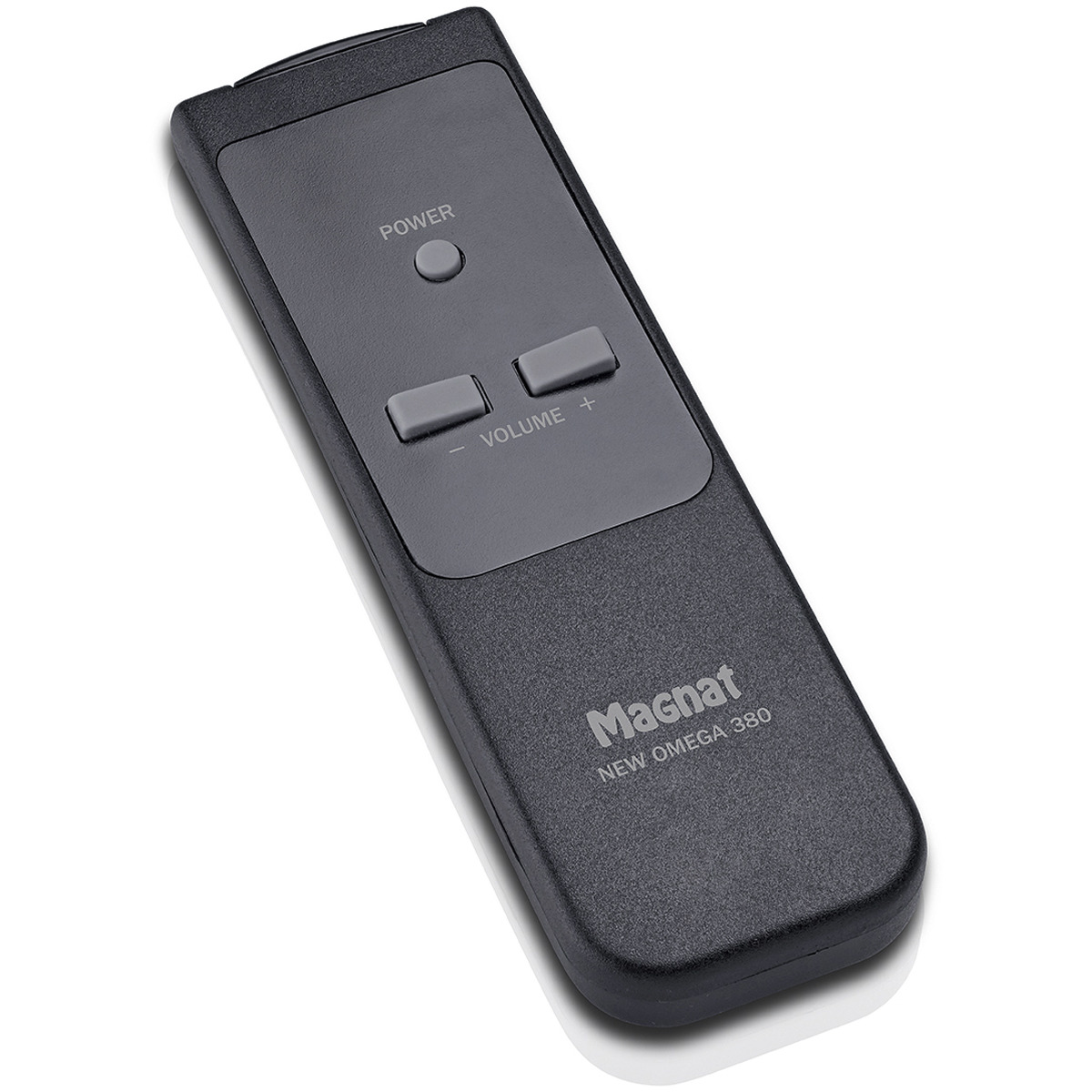

Volume and power/standby mode can also be controlled via the supplied remote control

Active frequency response equalization up to 150 Hz (LPC circuit) for seamless integration in AV environments

Automatic standby function with low power consumption <0.5 watts (can be switched off)

Selectable mains voltage (115/230 V)

Power switch

Phase switchable from 0° to 180°
