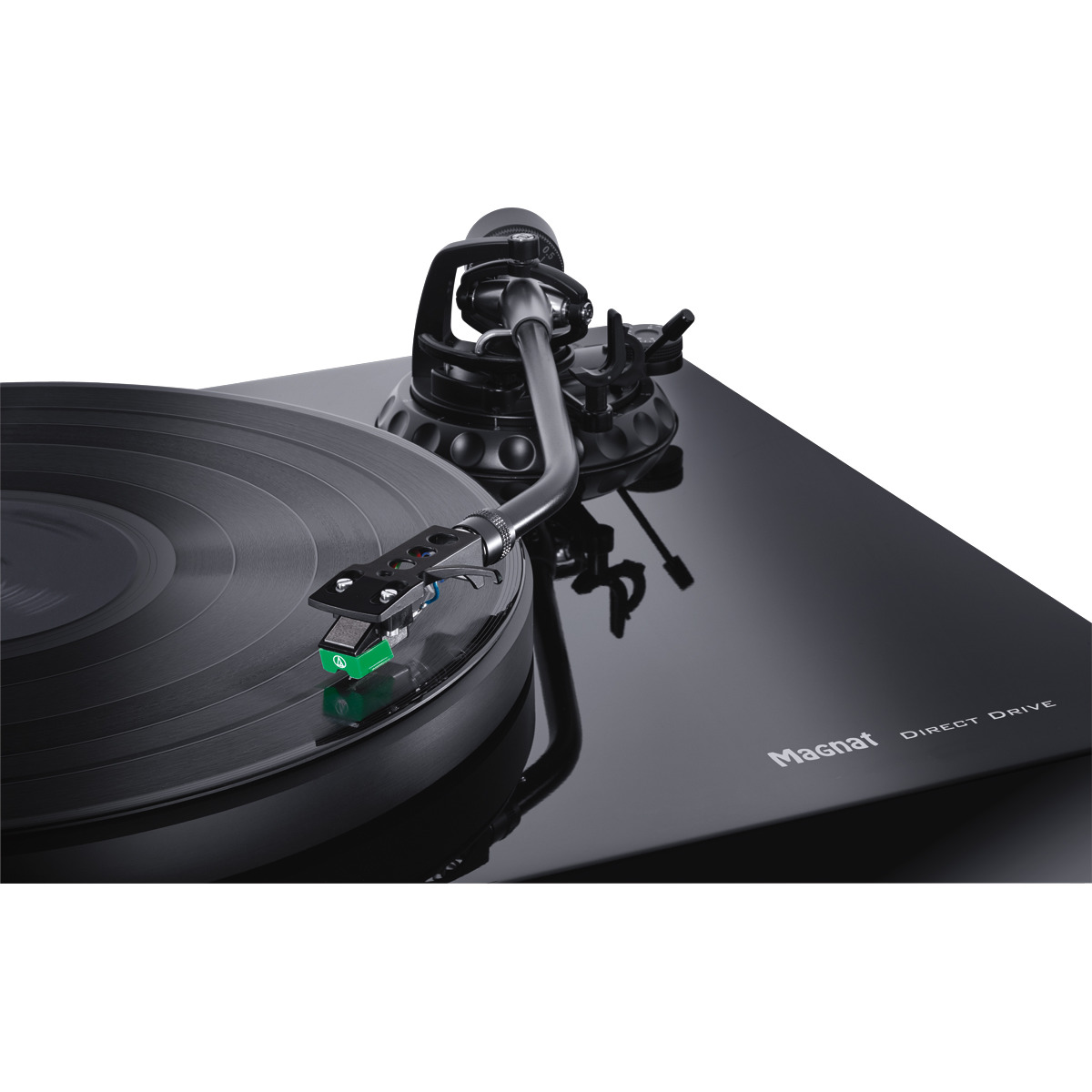

AUDIOPHILE DIRECT-DRIVE RECORD PLAYER INCL. CARTRIDGE

Quartz-controlled direct drive for the perfect desired speed

No belt slippage, unrestrained dynamics

Heavyweight turntable with a case made of solid MDF

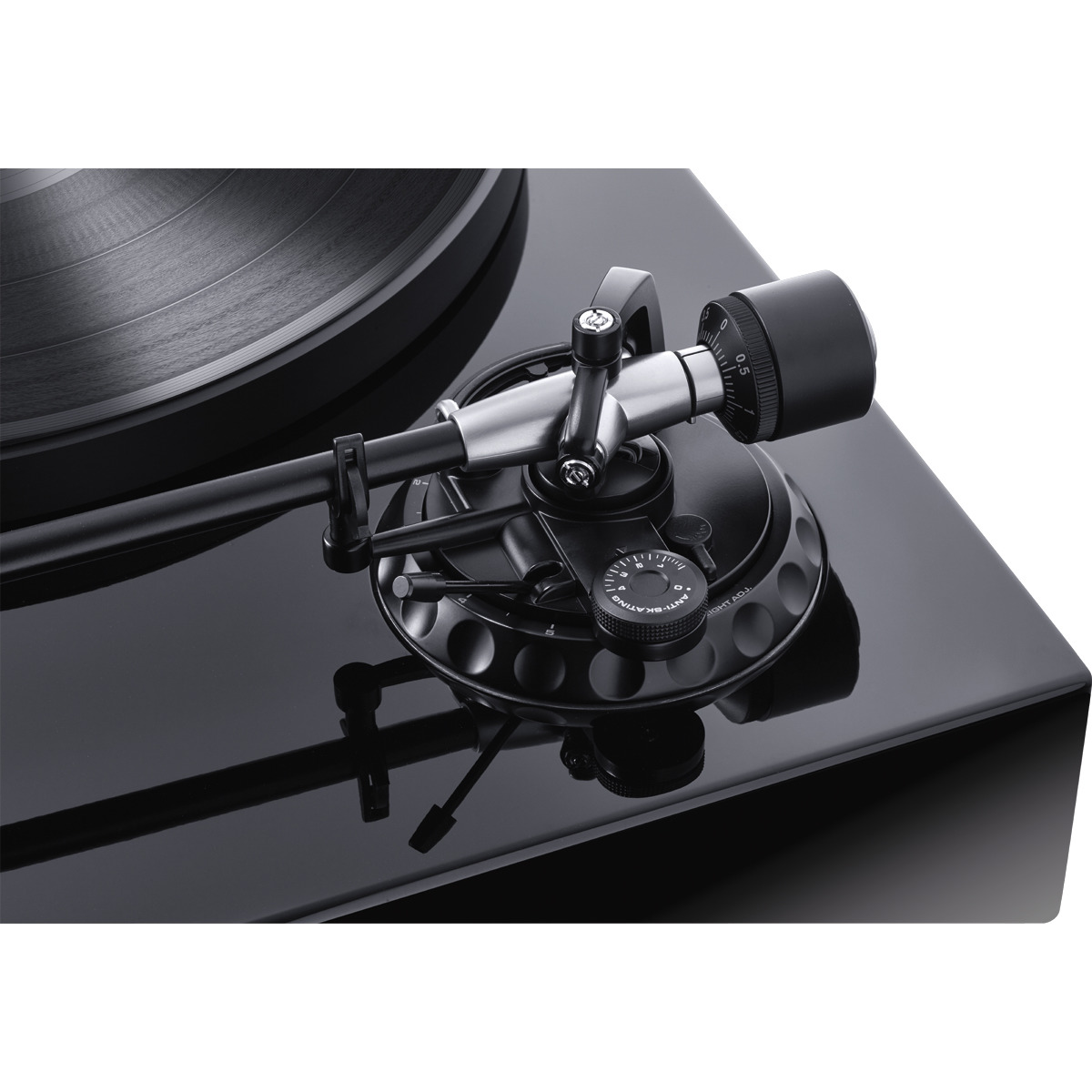

10-inch J-tonearm for the lowest possible tracking angle error

Thanks to three speeds (33 1/3, 45, 78 r.p.m.) with a corresponding pickup, also suitable for shellac records

The Magnat MTT 990 is the first record player in Magnat´s company history. It was created with all our knowledge gathered from 45 years of hi-fi development and the expertise of proven analogue specialists. And because our standards are so high, the first Magnat record players just had to have a direct-drive system. The goal was to combine the reliability of studio and DJ turntables with audiophile acoustic characteristics.

PRINCIPLE - Quartz-controlled direct drive

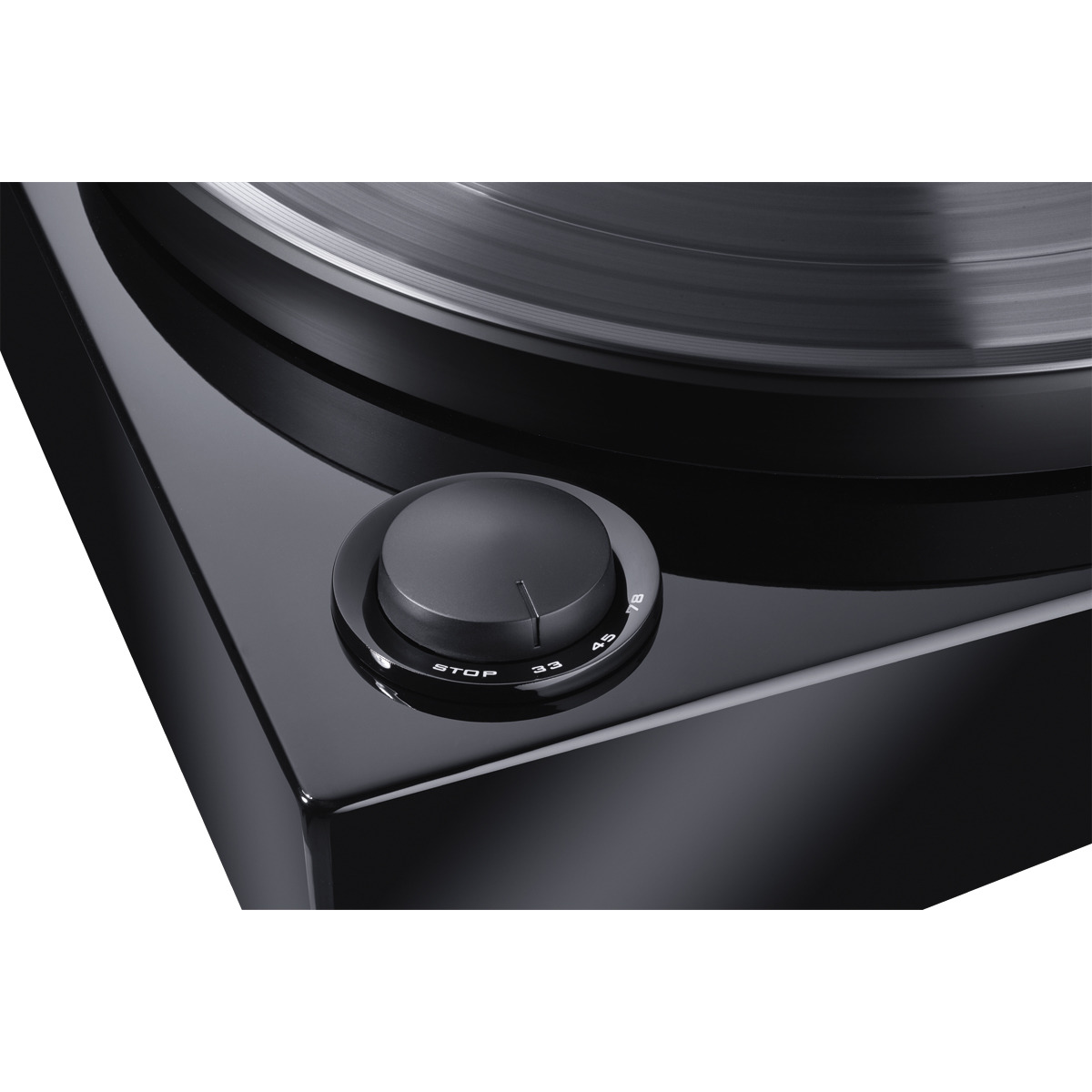

SPEEDS - 33 1/3, 45, 78 rpm

WOW & FLUTTER - < 0.08% (33 1/3 rpm)

SIGNAL/NOISE RATIO (A-WEIGHTED) - > 72 dB

TORQUE - > 2.2 kgf cm

SIGNAL/NOISE RATIO (UNWEIGHTED) - > 65 dB

PLATTER DIAMETER - 305 mm

TONEARM LENGTH - 10“

FOR CARTRIDGES WEIGHING - 3 - 10 g

FOR CARTRIDGES WITH A DYNAMIC COMPLIANCE OF - Medium – medium-stiff

OVERHANG - 15.3 mm

OFFSET ANGLE - 21.4 °

WEIGHT OF HEADSHELL - 9 g

ADJUSTMENT RANGE OF TRACKING FORCE - 0 – 40 mN / 0 – 4.0 g

ADJUSTMENT RANGE OF ANTISCATING - Analogue to tracking force

VTA (HEIGHT ADJUSTMENT) - 6 mm

CABINET SURFACE - Piano Black

DIMENSIONS (WXHXD) - Cover closed: 450 x 162 x 367 mm Cover open: 450 x 412 x 412 mm

WEIGHT - 11 kg

SIGNAL/NOISE RATIO (A-WEIGHTED) - > 72 dB

DRIVE - Quartz-controlled direct drive with high torque motor, Comfortable one-button control, Speed selection: 33 1/3, 45, 78 rpm, Low standby power consumption: <0.5 Watt. Power supply 115 / 230 VAC 50/60Hz (switchable).

PLATTER - Heavy, solid platter made of precision-turned, high-compressed special polymer, Full-size platter (diameter: 12“ / 305 mm), The record can be placed directly on the platter or on a felt mat (included)

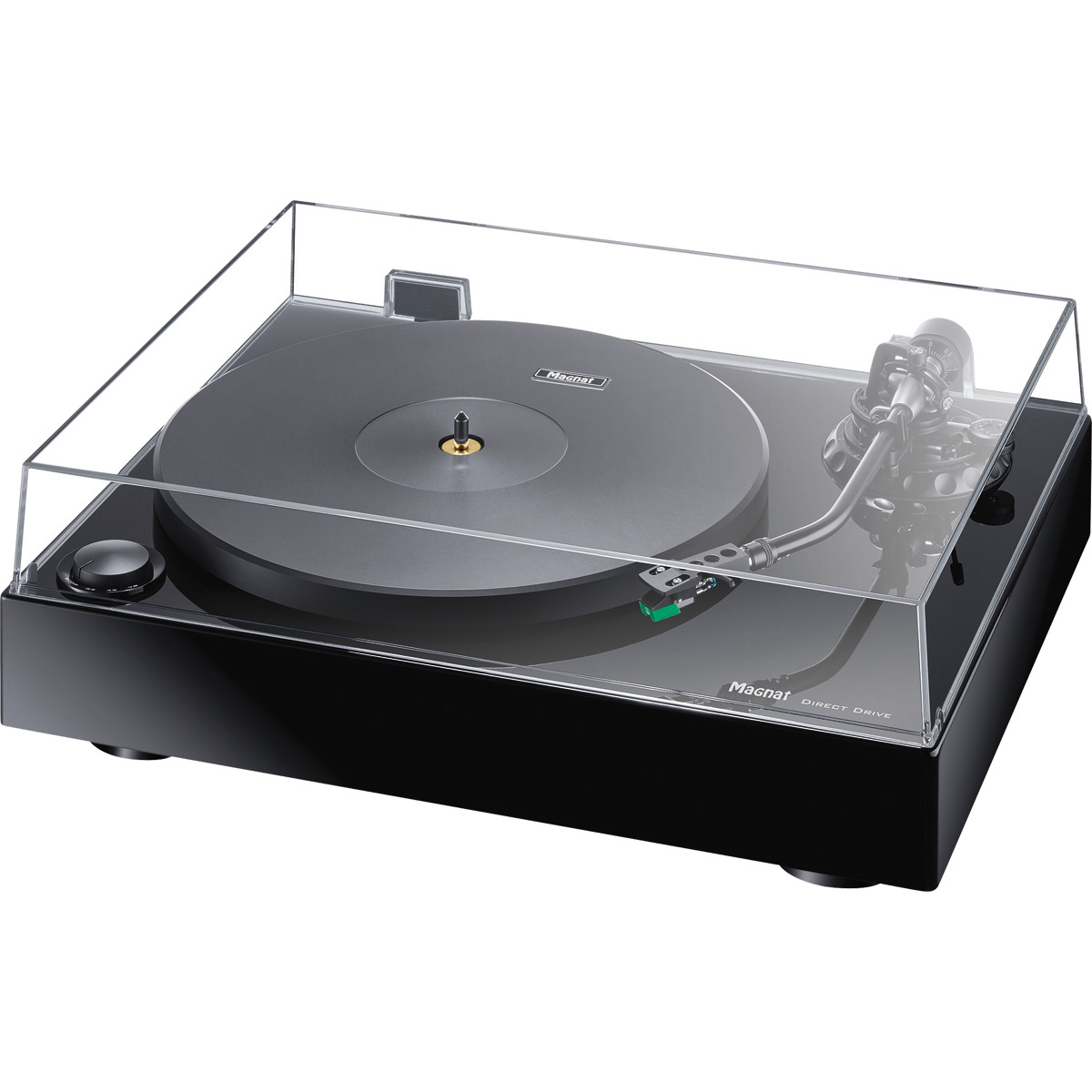

CABINET- Solid MDF cabinet, High-quality glossy lacquering, Height-adjustable, decoupling feet, Acrylic dust cover can be optionally mounted.

CABINET SURFACE - Piano Black
