8" 2-WAY RECESSED SPEAKER

Full, dynamic sound of a classy 2-way system

High-quality crossover with phase and amplitude correction

25 mm aluminium tweeters with a neodymium driver and adjustable dispersion characteristics

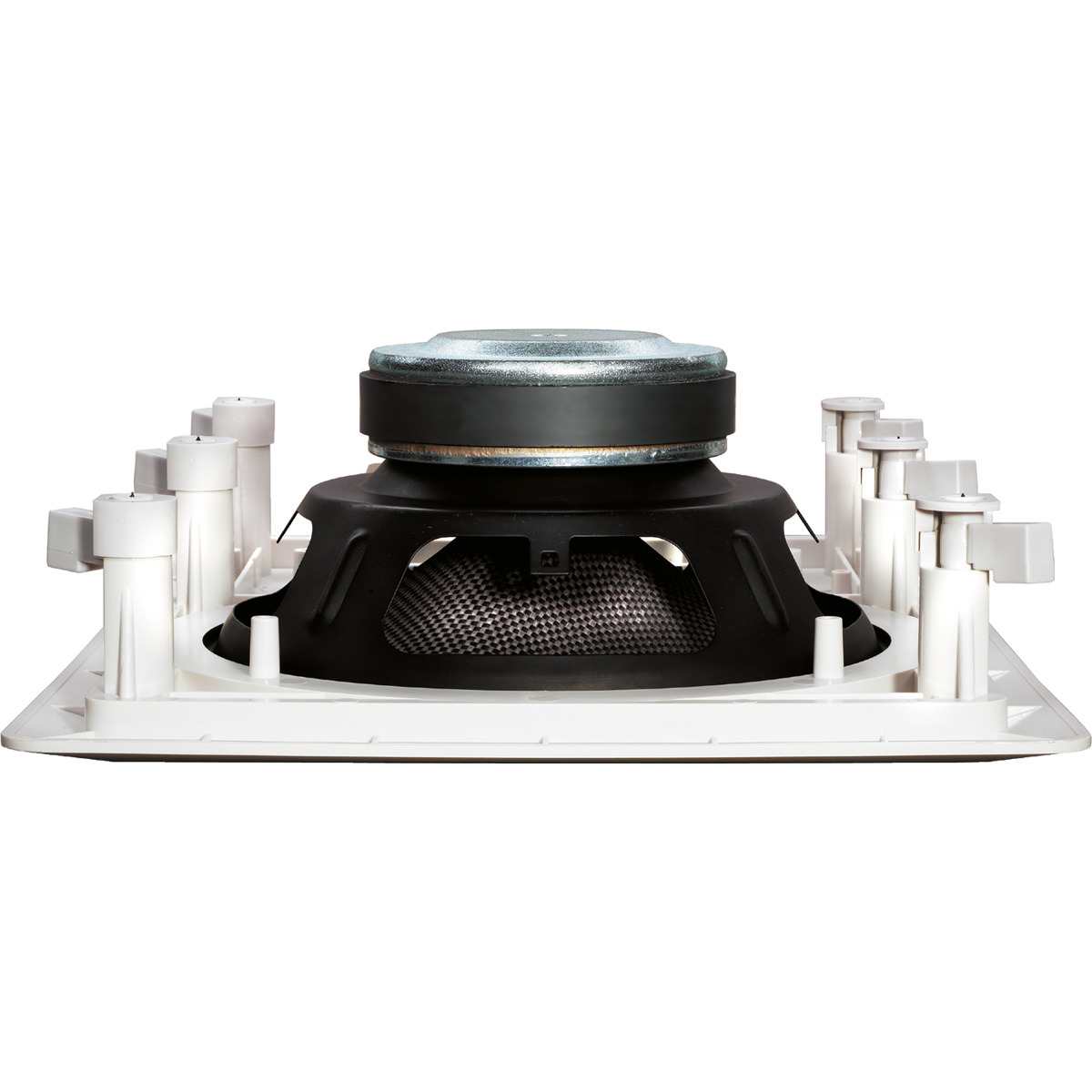

Specially developed securing system with clamping mechanism for easy fitting

200 mm carbon/fibreglass woofer for tight bass reproduction

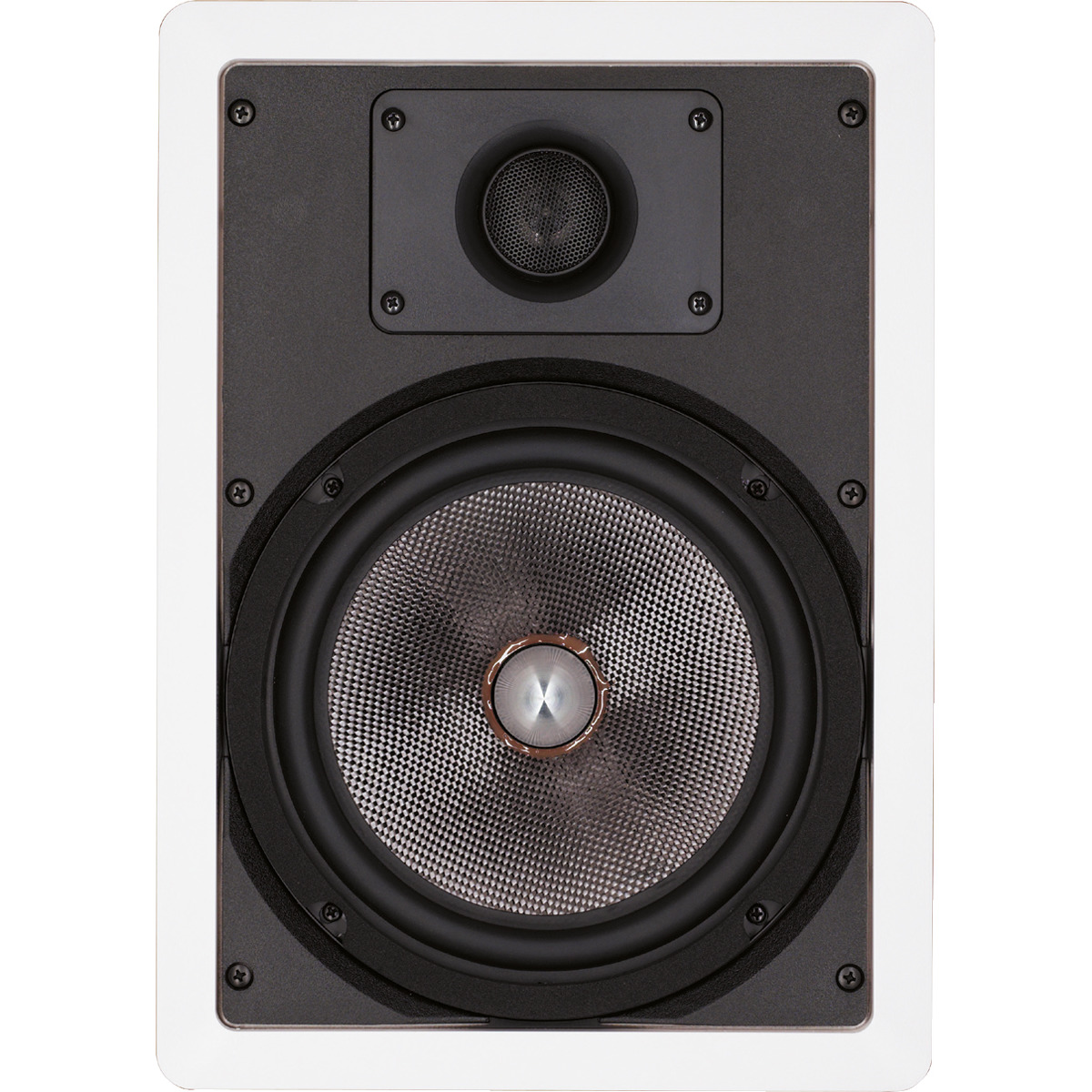

The IW 810 is the larger of two strong-sounding built-in loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound. A 25 mm fabric dome tweeter – which may be adjusted horizontally and vertically – has been fitted into the front. Which means that the emitted sound may be perfected to suit even very different room conditions. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.

PRINCIPLE - 2-way in-wall/in-ceiling loudspeaker

EQUIPMENT - 25 mm tweeter 200 mm woofer

POWER HANDLING (RMS/MAX.) - 100 / 180 watts

SENSITIVITY (2.8V/1M) - 91 dB

IMPEDANCE - 4 – 8 Ohms

FREQUENCY RESPONSE - 32 - 32000 Hz

CROSSOVER FREQUENCIES - 3500 Hz

RECOMMENDED AMPLIFIER OUTPUT - 30 - 180 Watts

MOUNTING DEPTH - 90 mm

OUTER DIMENSIONS (WXH) - 255 x 358 mm

CUTTING OUT (WXH) - 224 x 335 mm

HIGHLIGHTS - High-End in-wall/in-ceiling loudspeaker. Simple mounting with special mechanism

CROSSOVER - High quality crossover with APOC. Switchable tweeterlevel

CONNECTIONS - Massive connecting terminal

LOUDSPEAKER DRIVERS - Tweeter with 25 mm aluminium dome and strong neodymium drive. Tweeter is switchable for best performance. Woofer and midrange with carbon fibre cone and phase plug
