6.5" 2-WAY RECESSED SPEAKER
Full, rich sound with remarkable clarity
High-quality crossover with phase and amplitude correction
25 mm aluminium tweeters with a neodymium driver and adjustable dispersion characteristics
Specially developed securing system with clamping mechanism for easy fitting
160 mm carbon/fibreglass woofer for tight bass reproduction

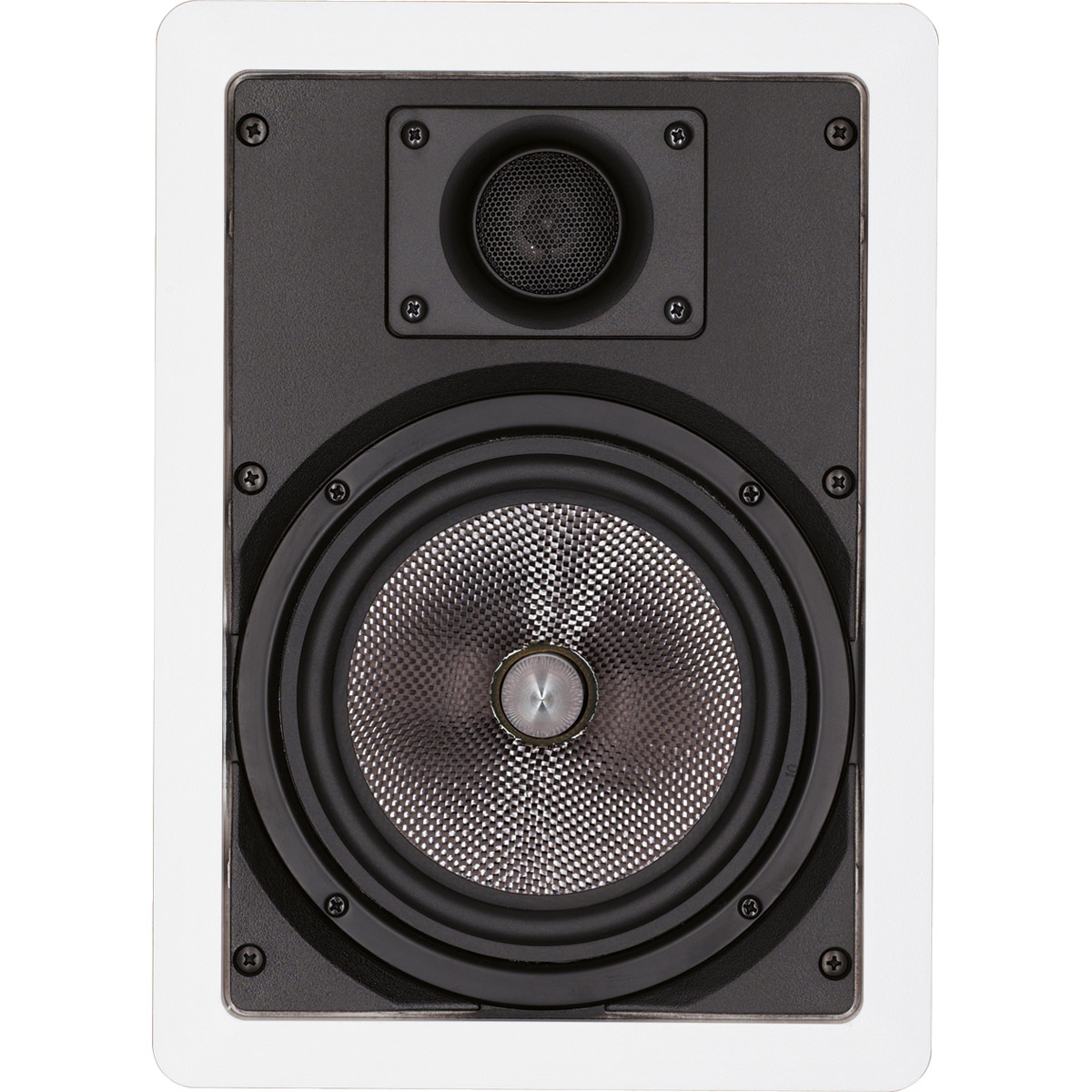

The IC 610 is the smaller of two strong-sounding built-in loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound. A 25 mm fabric dome tweeter – which may be adjusted horizontally and vertically – has been fitted into the front. Which means that the emitted sound may be perfected to suit even very different room conditions. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.
PRINCIPLE - 2-way in-wall/in-ceiling loudspeaker
EQUIPMENT - 25 mm tweeter 160 mm woofer
POWER HANDLING (RMS/MAX.) - 75 / 140 watts
SENSITIVITY (2.8V/1M) - 90 dB
IMPEDANCE - 4 – 8 Ohms
FREQUENCY RESPONSE - 35 – 32000 Hz
CROSSOVER FREQUENCIES - 3500 Hz
RECOMMENDED AMPLIFIER OUTPUT - 30 - 140 watts
MOUNTING DEPTH - 85 mm
OUTER DIMENSIONS (WXH) - 220 x 306 mm
CUTTING OUT (WXH) - 188 x 275 mm
HIGHLIGHTS - High-End in-wall/in-ceiling loudspeaker. Simple mounting with special mechanism.
CROSSOVER - High quality crossover with APOC. Switchable tweeterlevel
CONNECTIONS - Massive connecting terminal
LOUDSPEAKER DRIVERS - Tweeter with 25 mm aluminium dome and strong neodymium drive. Tweeter is switchable for best performance. Woofer and midrange with carbon fibre cone and phase plug
