MAGNAT Interior ICQ 62

Purchase this product

RRP: $399.95
Our Price: $399.95

Enquire about this product Print Product Information

6.5" 2-WAY HIGH-END RECESSED SPEAKER


Ceiling loudspeaker for precise and detailed reproduction

High-quality crossover with triple level adjustment for the treble and mid-ranges

High-end 25 mm fabric tweeter for maximum impulse fidelity

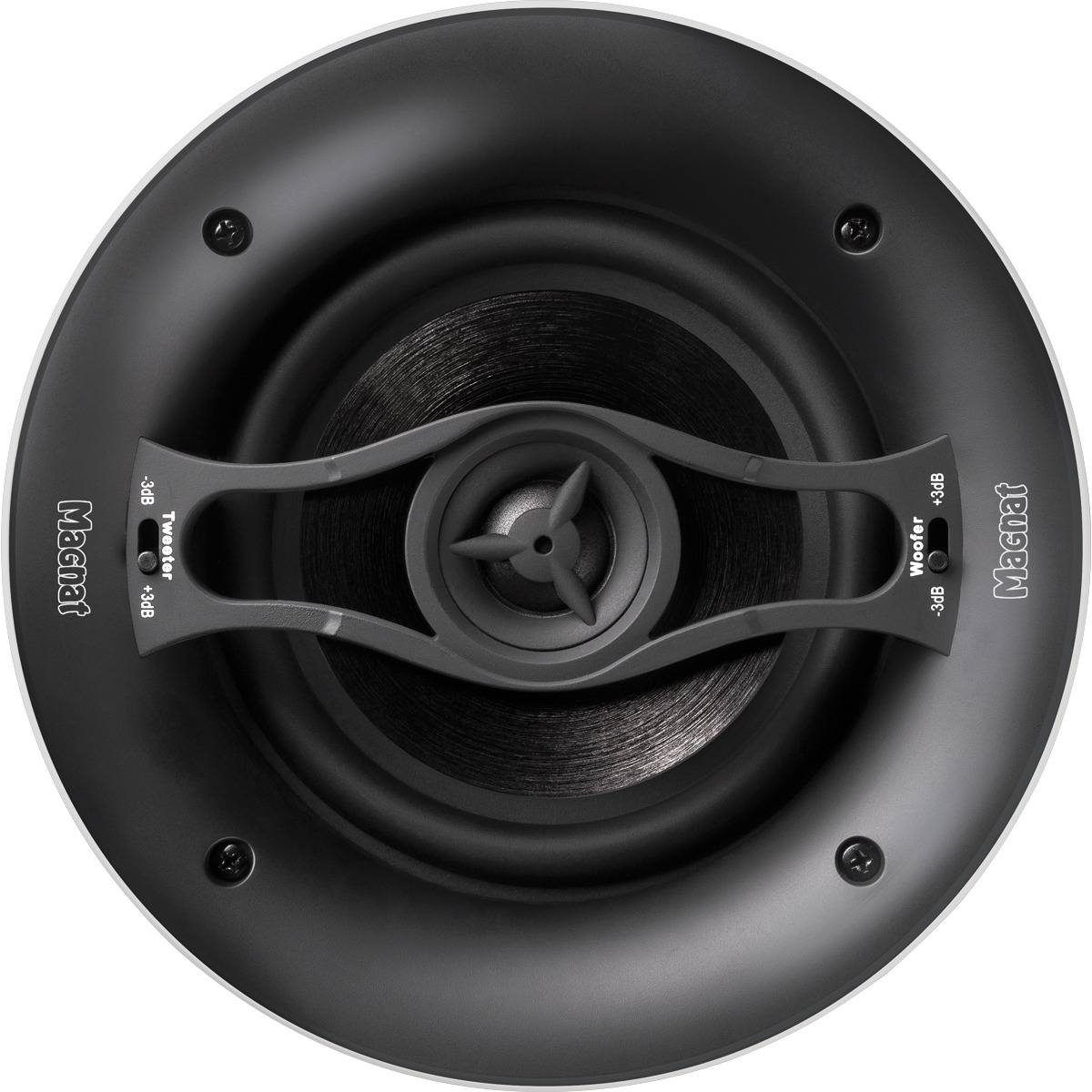

Swivel tweeter up to 35° for precise locatability

160 mm woofer with torsion-resistant ceramic-aluminium membrane

This built-in ceiling loudspeaker with particularly high-quality workmanship follows all the major parameters of Magnat´s Quantum technology. Just like the classic home-audio boxes, the ICQ 62 has also been equipped with bass/mid-range cones made from highly stable and torsion-resistant ceramic-aluminium. This material results in extremely accurate reproduction and reveals even the finest of acoustic details. All the high frequencies are reproduced through a coated fabric dome tweeter delivering highest pulse fidelity and freedom from distortion. Also, a complex crossover is responsible for precisely distributing the high and low frequencies.

PRINCIPLE - 2-way in-wall/in-ceiling loudspeaker

EQUIPMENT - 25 mm tweeter 160 mm woofer

POWER HANDLING (RMS/MAX.) - 100 / 180 watts

SENSITIVITY (2.8V/1M) - 90 dB

IMPEDANCE - 4 Ohms

FREQUENCY RESPONSE - 34 – 26000 Hz

CROSSOVER FREQUENCIES - 3800 Hz

RECOMMENDED AMPLIFIER OUTPUT - 20 - 200 Watts

OUTER DIMENSIONS Ø - 220 mm

CUTTING OUT Ø - 193 mm

MOUNTING DEPTH - 98 mm

WEIGHT - 1.3 kg

HIGHLIGHTS - High-End in-wall/in-ceiling loudspeaker. Special clamping mechanism for easy installation. Moisture-proof speaker system, suitable for use in humid rooms (bathroom)

CROSSOVER - Crossover with high-quality components and 3 settings for tweeter and midrange level

CONNECTIONS - Gold-plated push terminal

LOUDSPEAKER DRIVERS - Coated silk soft dome tweeter. Tweeter with Swivel technology (can be turned by 35°). Low-resonance aluminium woofer cone with hairline finish. Long-throw rubber surround for maximum excursion. Exclusive aluminium design protection grille.
