8" 2-WAY RECESSED CEILING SPEAKER
Multi-directivity circuit for optimum adaptation to room acoustics
High-quality crossover with phase and amplitude correction
Two 19 mm aluminium tweeters with neodymium drivers, specially arranged for optimum dispersion characteristics
Specially developed securing system with clamping mechanism for easy fitting
160 mm carbon/fibreglass woofer for tight bass reproduction

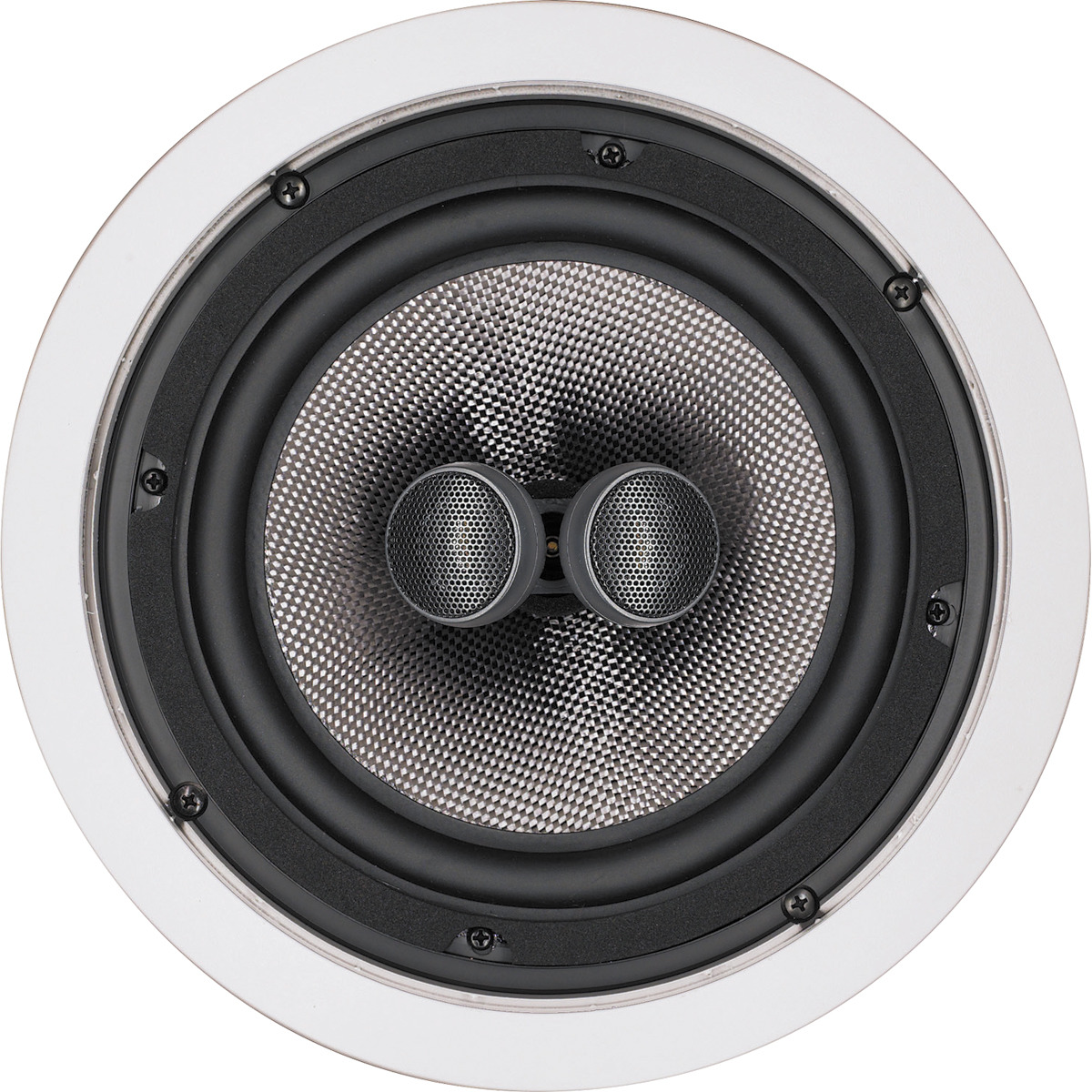

The IC 82 is the larger of two strong-sounding built-in ceiling loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound. The two built-in coaxial tweeters make two circuit versions possible – sound directed over a wide area or at specific points. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.
PRINCIPLE - 2-way in-wall/in-ceiling loudspeaker
EQUIPMENT - 2 x 19 mm tweeter 200 mm woofer
POWER HANDLING (RMS/MAX.) - 100 / 180 watts
SENSITIVITY (2.8V/1M) - 91 dB
IMPEDANCE - 4 – 8 Ohms
FREQUENCY RESPONSE - 32 - 35000 Hz
CROSSOVER FREQUENCIES - 3500 Hz
RECOMMENDED AMPLIFIER OUTPUT - 20 - 180 Watts
OUTER DIMENSIONS Ø - 272 mm
CUTTING OUT Ø - 238 mm
MOUNTING DEPTH - 100 mm
HIGHLIGHTS - High-End in-wall/in-ceiling loudspeaker. Simple mounting with special mechanism. Multi-Directivity circuit to optimize the speaker to the room.
CROSSOVER - High quality crossover with APOC
CONNECTIONS - Massive connecting terminal
LOUDSPEAKER DRIVERS - Tweeter with 19 mm aluminium dome and strong neodymium drive, Special tweeter alignement for best sound, Woofer and midrange with carbon fibre cone and phase plug.
