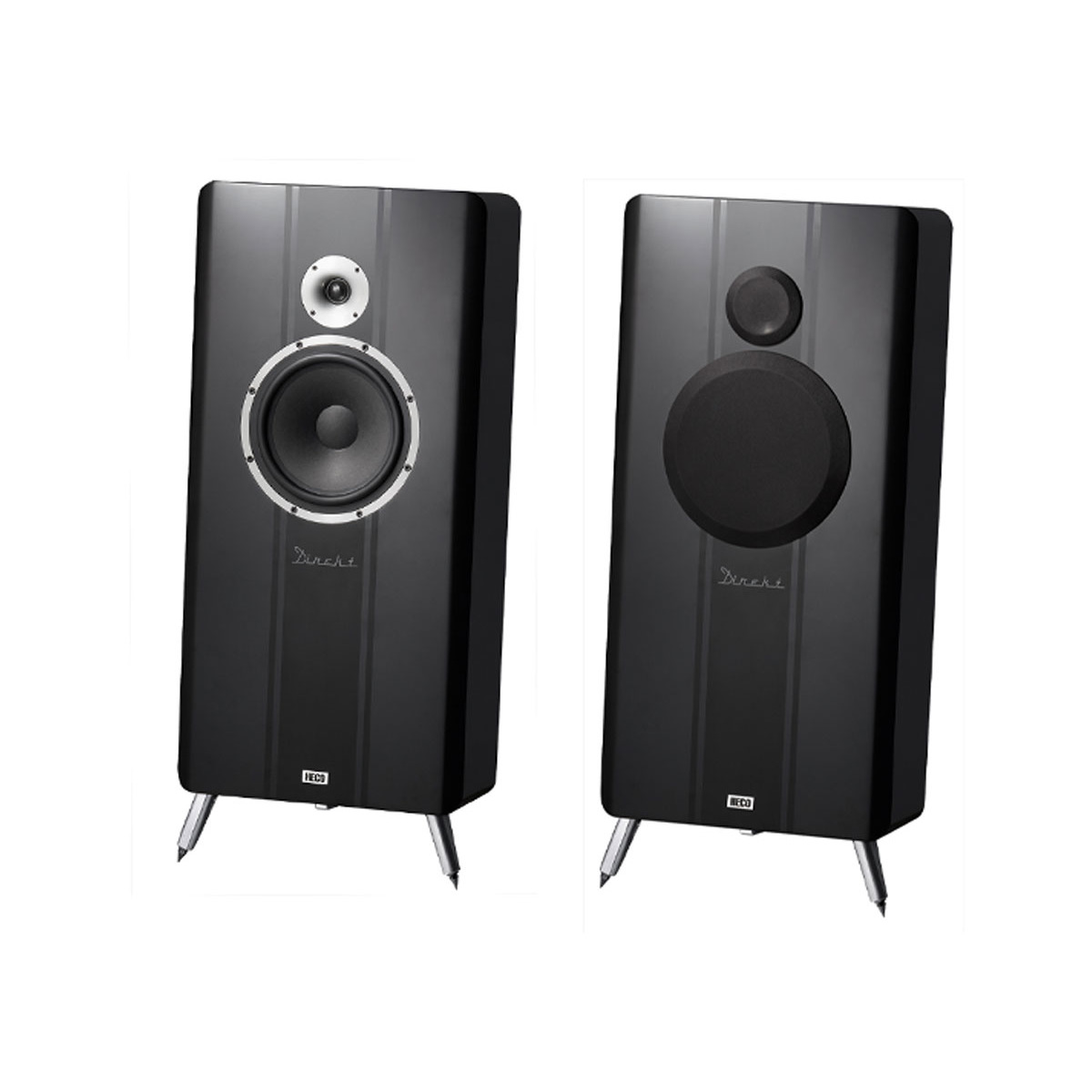

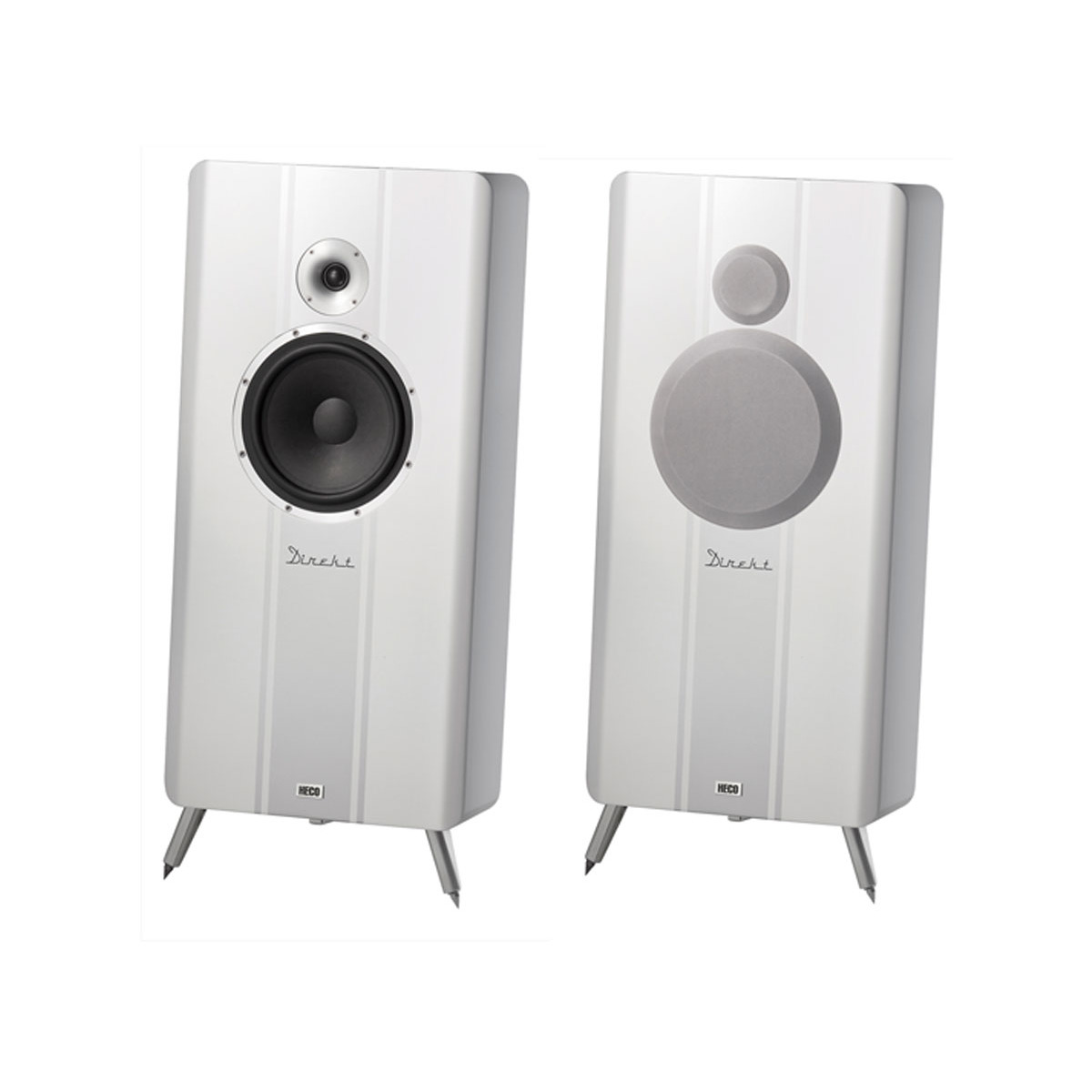

High-end 2-way loudspeaker
Inspired by classic models, the "Direkt" high-end two-way loudspeakers are custom-made in the Heco laboratory! A 25 cm subwoofer with a kraft paper diaphragm and extremely low-distortion drive is responsible for a crisp and precise bass, supported by a generous volume of air and two downfire reflex tubes. Combined with the high-energy silk cone with a particularly strong double-magnet drive and solid-aluminium wave-control horn, a finely balanced, dynamic soundscape is produced with a crystal clear and direct vocal range. On account of its excellent efficiency and linearised impedance characteristics, the Direkt harmonises perfectly not only with high-quality transistor amplifiers, but also with delicate tube amplifiers. The sloping flat enclosure in a dual-colour stripe design provides for visual highlights, while solid metal feet ensure optimum weight distribution thanks to the three-point mounting.
Principle - 2 way speaker, bass refley
Equipment - 275 mm bass/mid-range loudspeaker, 30 mm tweeter

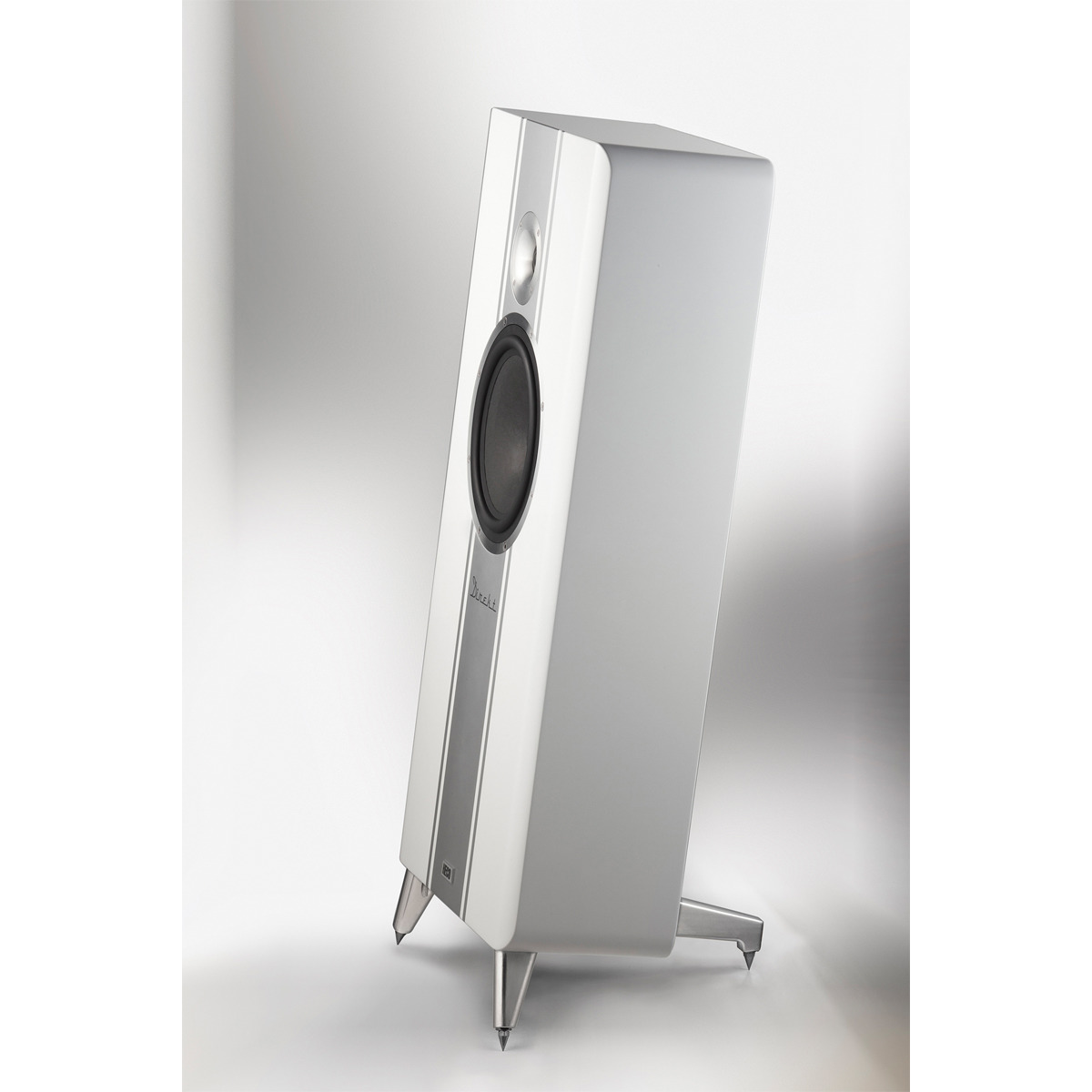

Cabinet - Stylish semi-matt lacquer finish with contrasting double stripes on the front. Solidly built, multiple strutted MDF flat enclosure with attractive curves. Specially designed all-metal foot construction for an absolutely stable base, three-point mounting for perfect weight distribution. Floor-protecting rubber feet and all-metal spikes included. Double bass-reflex design with bi-directional. airflow-optimized rounded downfire tubes for maximum bass effect.
Features - High-end high-efficiency two-way floor-standing loudspeakers. Large two-way system with particularly high efficiency for excellent dynamics, Can be combined optimally with transistor and tube amplifiers from 10 watts per channel. Attractive flat-design enclosure, floating appearance through all-metal design foot construction. Magnet systems linearized with the high-tech Klippel measuring system for ideal symmetry and minimal distortions.
Dimensions (WxHxD) - Cabinet 440 x 900 x 200 (230 incl. Terminal) mm, Incl. foot construction 440 x 998 x 397 mm.

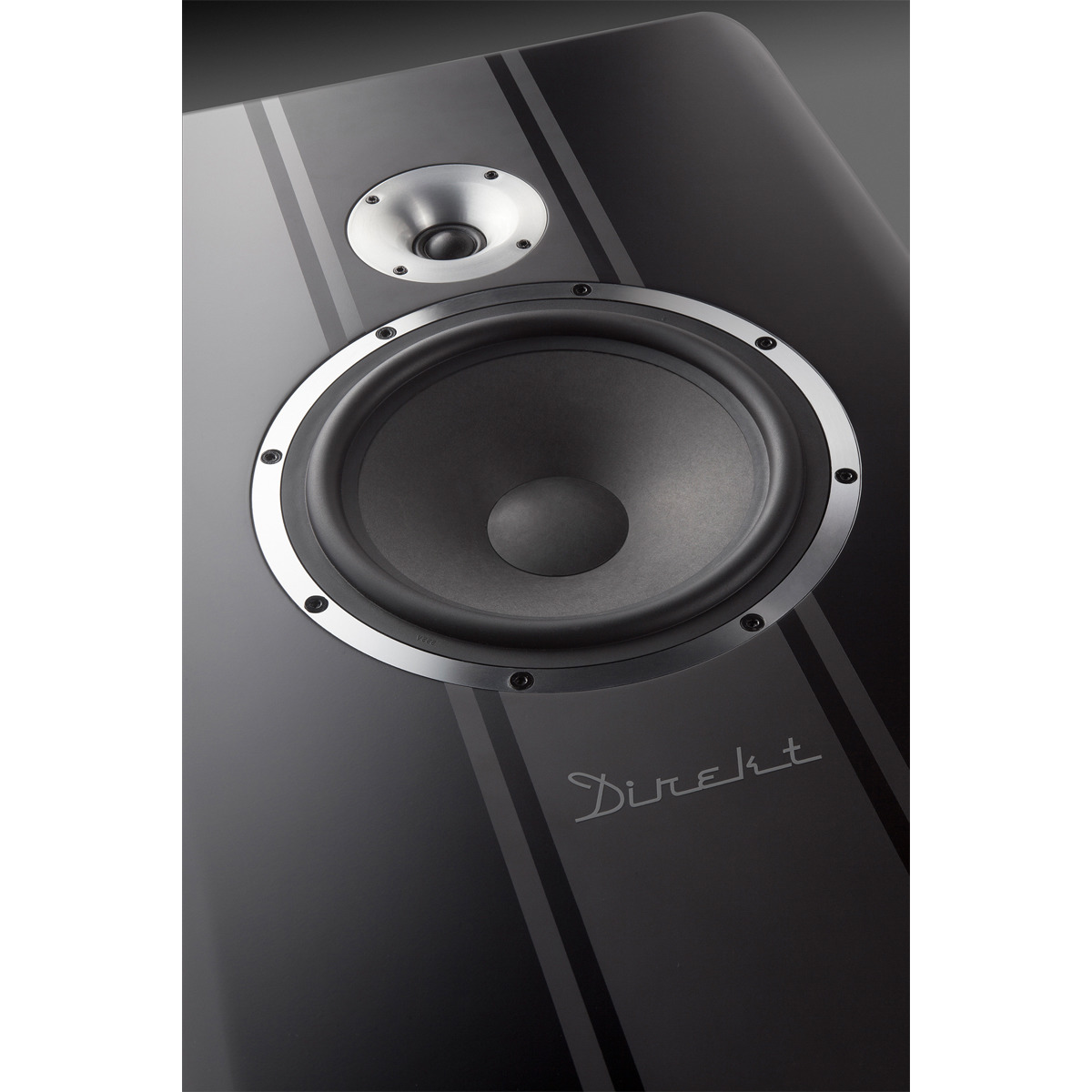

Woofer-midrange - Especially efficiency and gentle roll-off-optimized woofer midrange with Kraft paper diaphragm, lightweight dust-protection cone, low-loss rubber surround and highly durable voice coil in a stable die-cast aluminum cage
Tweeter - Newly developed tweeter with particularly high efficiency through the 28mm silk compound cone, solid aluminium front panel with high-efficiency wave-control horn geometry and powerful double magnet system
Crossover - High-quality all-metal connector terminal with stable, gold-plated high-end screw terminals. Linearized impedance curve with very littlefluctuation for optimum behavior on tube andtransistor amplifiers from 10 watts per channel. High-quality all-metal connector terminal with stable,gold-plated high-end screw terminals.
Power Handling (RMS/Max) - 200 / 320 Watts
Sensitivity (2.8V/1m) - 95 dB
Impedance- 4 – 8 Ohms
Frequency response - 25 - 28.000 Hz
Crossover frequencies - 2.350 Hz
Recommended Amplifier Output - 10 – 320 Watts
Dimensions (WxHxD) - Cabinet 440 x 900 x 200 (230 incl. Terminal) mm. Incl. foot construction 440 x 998 x 397 mm
Weight - 25,8 kg
