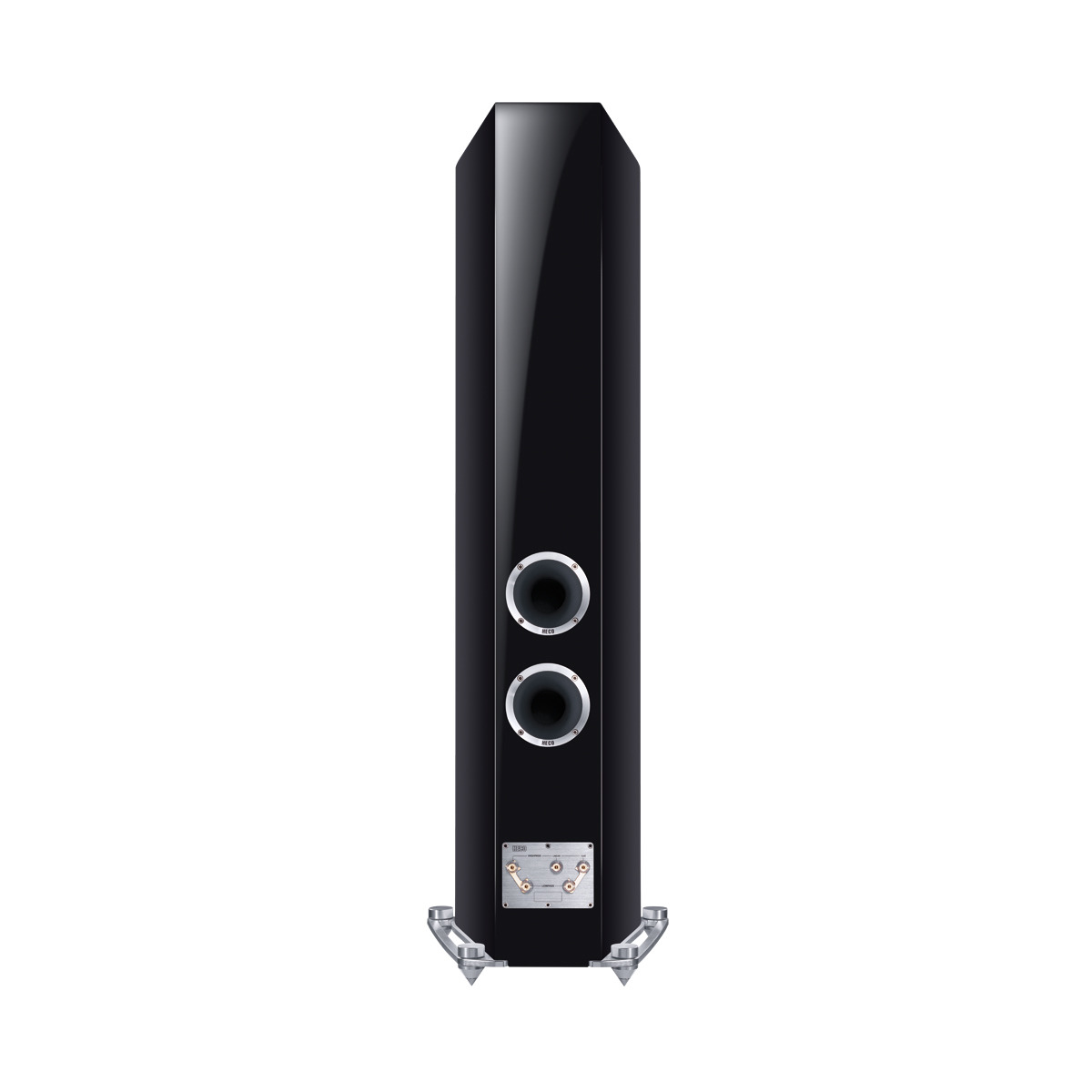

HECO CELAN REVOLUTION 9

Purchase this product

RRP: $10,629.95
Our Price: $10,098.45

Enquire about this product Print Product Information

3-way bass reflex floorstanding speaker with double bass configuration


Large state-of-the-art floorstanding speaker with outstanding acoustic properties. Eye-catching features of the largest floorstanding speaker in the series include its angled top and solid aluminum struts, which provide a broad base for a secure footing. Height-adjustable metal spikes ensure the speaker is positioned at a perfect distance from the ground, thereby paving the way for an unadulterated high-end listening experience. The bass and mid-range frequencies are catered for by two 200 mm woofers and a 170 mm midrange driver with tried and tested HECO kraft paper cones, which are renowned for their audiophile sound characteristics and high level stability. The newly developed Fluktus tweeter, which features a computer-optimized multi-wave front panel and 30 mm PFC dome, reproduces its entire frequency spectrum with very natural tones and without any form of exaggeration.





Principle - 3 way speaker, bass reflex


Equipment - 170 mm midrange, 2 x 200 mm woofer, 1.2" Dome-tweeter


Cabinet - Solid construction using MDF panels and elaborated struttings, rounded side panels and elegantly angled top side. Solid aluminium cross beams with height-adjustable massive metal cone spikes, Exchangeable metal/rubber spike tips for an optimum adaptation to the floor type.


Woofer - Woofer with HECO kraft paper cone, large dustcap, long-throw surround and 32 mm high-performance voice coil optimized for the low frequencies.


Midrange - Midrange with HECO kraft paper cone, new developed POCdustcap (Phase Optimisation Cap), coated fabric surround and 25 mm voice coil optimized for neutral reproduction.


Tweeter - High Energy tweeter (2nd generation) with 30 mm Polyfiber Compound Dome (PFC Dome), powerful double ferrite magnet system and new aluminium front plate with Fluktus geometry.


Crossover - Elaborated crossover with high-quality exacting tolerance components, Tweeter level adjustment ‚linear’ / ‚+2dB’. High-quality connecting terminal with solid, gold-plated and capsulated screw connectors.


Power Handling (RMS/Max) - 280 / 450 Watts


Sensitivity (2.8V/1m) - 93 dB


Impedance - 4 – 8 Ohms


Recommended Amplifier Output - 30 - 450 Watts
