Teac TN-100

Purchase this product

RRP: $399.99
Our Price: $389.00

Enquire about this product Print Product Information

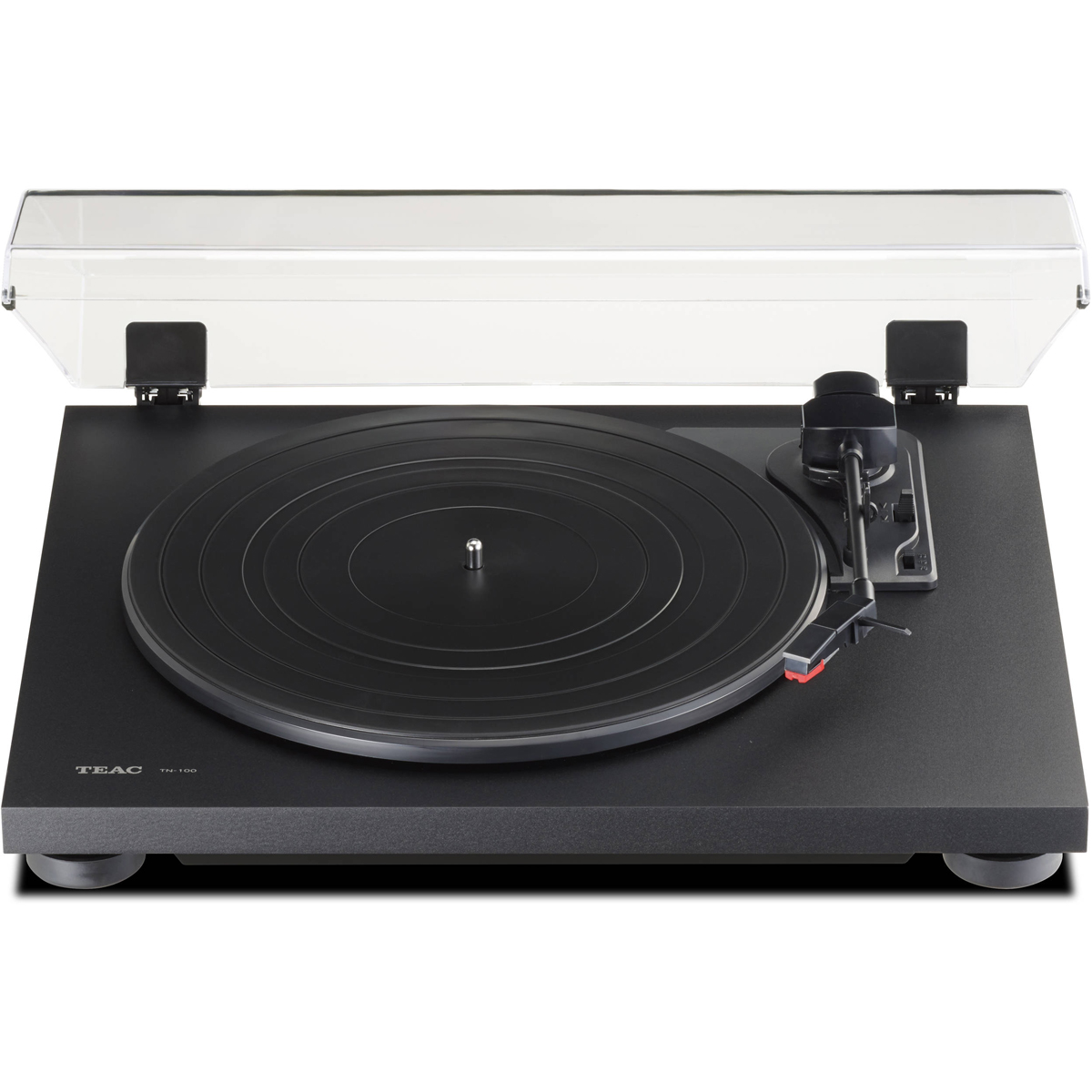

Teac TN100 USB Turntable


Turntable section Drive System Belt Drive Motor DC Motor Speed 33 1/3 RPM, 45 RPM, 78 RPM Rotation Speed Variation +/–2% Wow and Flutter 0.2% Signal-to-Noise Ratio 67dB or higher (A-weighted, 20kHz LPF) 60dB or higher (unweighted, 20kHz LPF) Platter Plastic Diameter of Platter 12", 30cm Tonearm section Type Static Balance, Straight Effective Arm Length 8.8", 223mm Stylus Pressure Range 0 to 5g Supported Cartridge Weight 3.5 to 6.5g Anti-skating Adjustment Supported Cartridge section Type Fixed Stylus Shape Elliptical Stylus Construction Bonded Round Shank Frequency Response 20Hz to 20kHz Channel Separation 20dB at 1kHz Channel Balance 2.0dB Tracking Force 1.5 to 2.5g Vertical Tracking Angle 20 degrees Supported Load Impedance 47k ohms Output Voltage 4.5mV +/–3dB Stylus Pressure 2.0g +/–0.5g Cartridge Weight 5.7g +/–0.5g Head-shell Weight 10g (including Screws, Nuts and Wires) Phono Equalizer Amplifier Type of Amplifier MM type (On/Thru switchable) Analog Output Connector RCA Pin jack (Gold-plated) Output Voltage Phono/Line switchable Phono Output 4.5mV +/–3dB Line Output 120mV (–13dBV) USB Output section Connector USB B type Output Signal PCM 48kHz/16-bit Supported OS Windows 7 Windows 8 Windows 8.1 Windows 10 OS X Lion (10.7) OS X Mountain Lion (10.8) OS X Mavericks (10.9) OS X Yosemite (10.10) OS X El Capitan (10.11) macOS Sierra (10.12) Power AC 100 to 240V, 50/60Hz Power Consumption 1.5W (less than 0.5W at Standby) Overall Dimensions (W x H x D) 16.5" x 4.6" x 14.0" 420 x 117 x 356 mm Weight Approx. 10.8 lbs. 4.9 kg Accessories Rubber Sheet, EP Adapter, Counter Weight, Fixed Head-shell (TEAC cartridge), Platter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card)
