USB & Headphone Amplifier

>Premium XMOS USB receiver.

>Supports 32-Bit/384kHz PCM and DSD256 decoding.

>Flagship-grade ES9038Q2M DAC Chip.

>High-Performance OPAMP.

>Dual USB modes.

>Coax+Optical Line out.

>Uncompromised Power Supply With USB Type-C Connector.

>Two-level gain switch.

>Bass-Boost switch.

>Dual headphone output, 3.5mm SE+2.5mm Bal.

>ADC Volume Control.

>RGB indicator light.

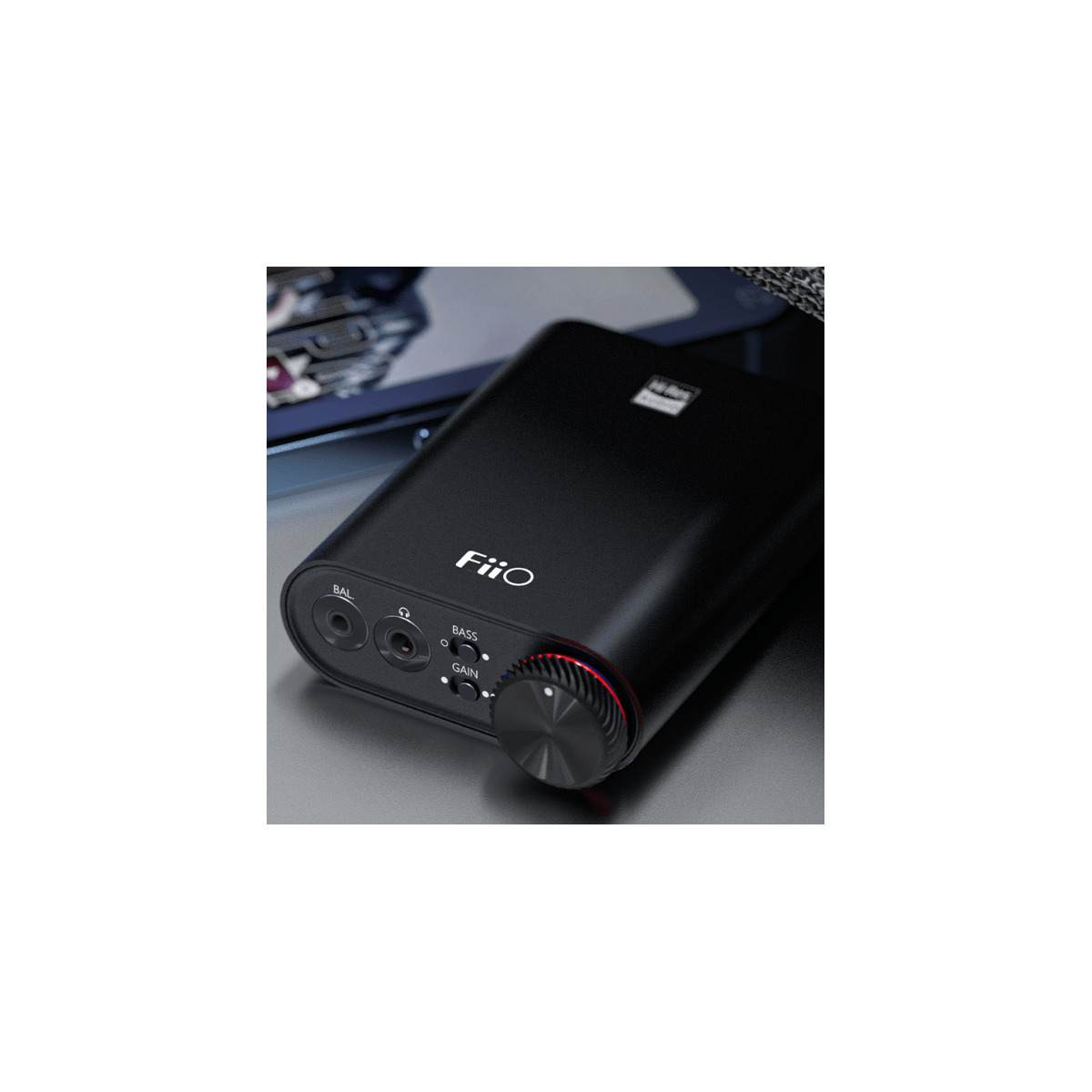

FiiO has introduced an upgrade to the highly acclaimed K3 Desktop DAC/Headphone AMP, behold the brand new FiiO K3 2021. Improving over the architecture of the former model, the latest K3 2021 features a flagship-grade DAC chip, dual crystal oscillators, XMOS USB signal receiver, Coax+Optical+Aux line out, 3.5mm+2.5mm headphone out, and many more features. Elevate your audio experience with the FiiO K3 2021 today!!

Technical Parameters:-

>XMOS XU208 USB Chip.

>ES9038Q2M DAC.

>LPF: Ti OPA1612.

>AMP: OPA926x2.

>Max sampling rate: PCM 32-Bit/384kHz, DSD256(USB), PCM 32-Bit/192khz, DSD64(Coaxial), PCM 24-Bit/96kHz(Optical).

>Output Power: Up to 200mW Bal(32ohm), Up to 114mW PO(32ohm).

>SNR: 121dB PO and LO, 120dB Bal.

>Noise Floor: </=4uV PO, </=6uV Bal, </=3uV LO.

>Recommended Headphone Impedance: 16ohm-150ohm.
